Complete Not another WH20 !

OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough

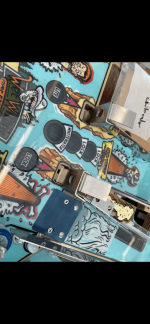

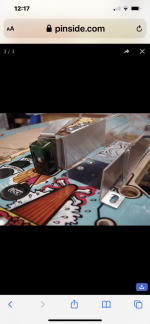

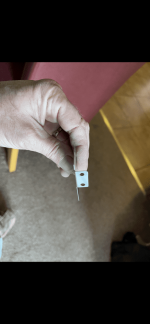

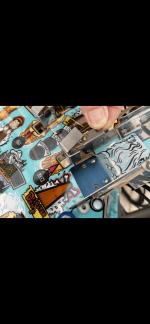

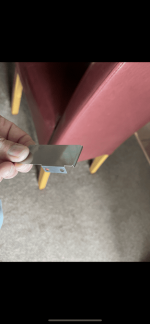

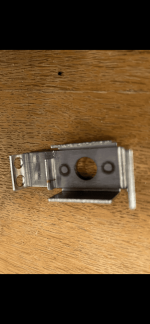

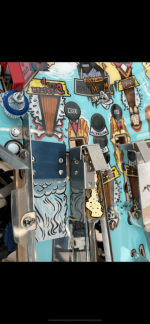

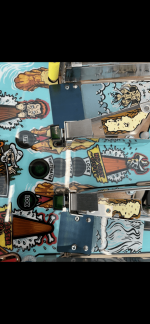

Mantis protectors fitted and just thought I’d show what appears to be a problem when using mantis protectors with cliffys ramp protector.

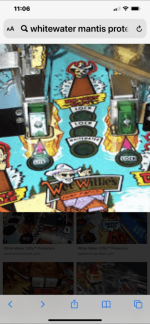

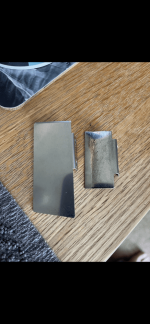

If you look on cliffs website he is showing his longer ramp protector fitted with the wrong side mantis target protector.
This means that the mantis sits too far left and reduces the lane opening.

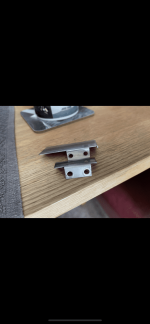

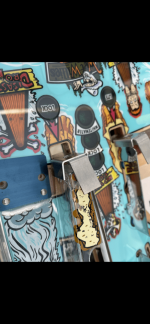

The mantis protectors are target and ramp protectors and the right hand one is designed to wrap around and overlap the factory fitted protector.
If you fit cliffs improved protector that has a 90 degree bend on the end which stops the mantis from fitting.
I have contacted Cliff and advised him to provide 2 options for his protector, as it is for use without mantis target protectors and one with the angle removed for use with mantis.

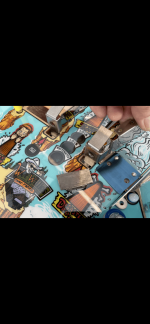

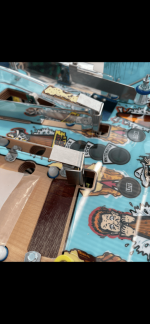

I also had an issue with the left mantis overhanging the ramp cutout, which prevented the left ramp from fitting correctly.
My ramps are new and thicker, so that probably doesn’t help.
Anyway, I simply marked the mantis protector where it was overhanging and removed that section with a dremel.
I probably removed more than I needed to but it fits perfectly now, and I didn’t have to adjust the targets either and they work perfectly.
I have read that people had issues where only a hard shot would register when used with mantis and some people even replaced the square targets with the smaller flat targets.
I believe that if the ramps and mantis protectors are fitted correctly you shouldn’t have any issues at all.


Attachments

  • 048C9A9D-9BF6-4026-AACB-75E169B07AA5.png
    193.6 KB · Views: 25
  • D83F1655-8892-4AB2-A7E5-69132AEBFDD0.png
    91.2 KB · Views: 26
  • DDDD3BAF-3EC0-4223-993E-7329E7F9D0A1.png
    158.3 KB · Views: 24
  • 203AAA7D-B838-4542-A8C8-C6235D20C8AB.png
    96.3 KB · Views: 22
  • 6BB8A820-7C20-4F3A-8D39-6AA2AACB6332.png
    159.4 KB · Views: 21
  • BC1133D0-57B9-4CD6-AFA6-AA8B3C377954.png
    60 KB · Views: 21
  • 9913E3D9-D547-4306-86D9-57D6A92D52A4.png
    149.8 KB · Views: 20
  • F7AE9D1F-1804-4259-B4E7-BEDF64B738F4.png
    79.9 KB · Views: 20
  • 9AED6742-4F07-4D9F-B78D-81D421C44D5F.png
    88.9 KB · Views: 20
  • D043B8F6-2113-4071-AF97-94B446EE0455.png
    149.9 KB · Views: 19
  • BDF2D78D-35FC-428D-82D3-7524B9CE78CF.png
    166.9 KB · Views: 18
  • 77EE1E90-CF3B-4F89-8288-EE0F997C2A68.png
    118.6 KB · Views: 17
  • 4E38EEEE-A1DF-4FE9-918B-66FE13967E0A.png
    153.2 KB · Views: 15
  • A8123DA8-6993-4E5E-A1AB-DD030BAB5894.png
    100.3 KB · Views: 24
  • Like
Reactions: Jb3d and Rpearsonx
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
Another couple of switches done.
I have 4 more to do !


Attachments

  • F5AF0247-D438-4031-B8A8-4F3600DD5602.jpeg
    208.3 KB · Views: 8
  • 3547A28A-22E6-4911-A857-47641F5FBEFD.jpeg
    215.1 KB · Views: 8
  • Like
Reactions: Jb3d
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
Upper playfield almost finished.
Need to attach the whirlpool ramp and then it’s going on the playfield tomorrow


Attachments

  • ADD98B55-F6B0-436C-A645-524DAD0D6585.jpeg
    264.3 KB · Views: 10
  • 346AE991-5F85-4874-A6DB-5AB7364F5B16.jpeg
    221.6 KB · Views: 10
  • FB04A6CA-C7BC-4B5B-B7E6-DD6093ABEE08.jpeg
    171.8 KB · Views: 10
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough

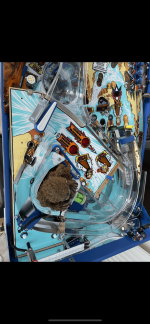

Upper playfield finally in !
The new ramps are thicker, so a fair bit of relocating and manoeuvring to do to get everything to sit correctly prior to fixing.
Spent a lot of time trying to find where a flasher was supposed to go as it clearly wasn’t in the correct place when I took it off, turns out someone bent the bracket and fixed it in the side of the playfield when it should have been fitted to the right side of upper playfield as it is the cave flasher.
2nd ramp fixed in place too.
Wrapped alll the flasher cables and connected up most of the upper playfield connectors and flashers under the playfield.
Made a bracket which will sit on backboard above mini playfield and fitted with orange led strip linked to gi to illuminate mountain from underneath which I’ll fit tomorrow.
Right mountain plastic fitted.
Oh and playfield protector removed.
I wasn’t happy with the water marks it was making, I use them all the time without issues but wasn’t working on this so no point to protect the playfield if it looks crap !
Also found some smaller hex posts for the sling spotlights so they will not only clear the glass but give easier individual positioning.
Hopefully last 2 big ramps will have switches done and new decals fitted tomorrow.


Attachments

  • F066CF9F-3CF1-4302-8F0F-7A832DDE46CE.jpeg
    246 KB · Views: 20
  • 28D8685D-B5B4-4DDB-963C-9028B07DFC2D.jpeg
    158.8 KB · Views: 19
  • 8A9B9458-10E5-411B-B91E-C04627A24657.jpeg
    227.7 KB · Views: 20
  • 72188835-CDCE-4874-9206-ED4325A2C6AD.jpeg
    255.4 KB · Views: 19
  • 1A77316A-733D-4CAF-8BCE-B2A95BA018B3.jpeg
    157.6 KB · Views: 19
  • C79F2174-3A00-43F5-812C-58B19249196B.jpeg
    189.2 KB · Views: 21
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
Finishing some bits on upper playfield while I can get at it easier, first up the Big Foot Hot Foot mod, led bank installed by diverter, another led bank installed to right of Bigfoot, just the spotlight to fit and the control board.
Fitted the bracket to backboard with amber led strip to light mountains from underneath.


Attachments

  • 85D17163-997E-4FD8-AEBB-7CAE2057246E.png
    146.8 KB · Views: 15
  • B58C360B-0C9A-472B-AC8C-265BBE0E627E.png
    142.9 KB · Views: 15
  • E3F27EC9-67AD-4321-99BF-504E95738A87.png
    151.3 KB · Views: 14
  • E5B6C4F5-8A9F-44A4-B098-A2BC07341F1A.png
    69.7 KB · Views: 15
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough

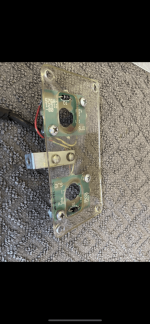

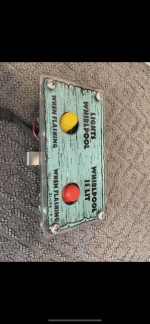

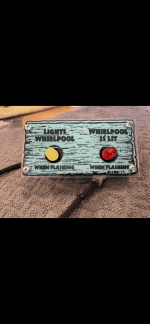

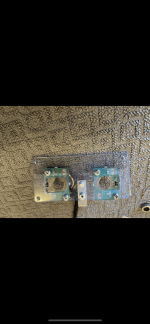

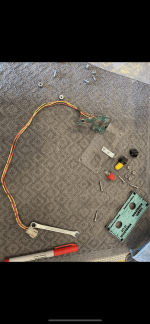

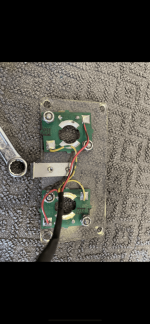

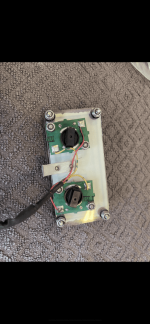

Stripped the light board, resoldered pcbs, drilled and riveted bracket to new blue plastic backboard.
Cleaned and wrapped cables, fitted new front plastic and yellow and red comet indicator bulbs.


Attachments

  • 22B3BAE3-FF56-4B5A-82F9-7C3ACD599EC4.png
    177.5 KB · Views: 9
  • 7159533F-3252-419B-A86C-53F9D0D43CAB.png
    181.1 KB · Views: 8
  • 54DFA23A-44A8-4831-9917-0326385C3035.png
    201.2 KB · Views: 7
  • 69423CAF-EDA1-4E37-A028-C754D73B69FB.png
    198.7 KB · Views: 7
  • 2B751771-5A63-44F1-8F9E-EFAC3D45D891.png
    111.1 KB · Views: 8
  • FB19A281-4933-4EDE-925F-8181947F653B.png
    79.4 KB · Views: 8
  • 060C56E9-D25A-45D2-923D-24EA1535B009.png
    204.6 KB · Views: 9
  • Like
Reactions: Jb3d and Tony
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
Spent rest of the day finally finishing last of the ramp switches, cleaning, soldering and wrapping.

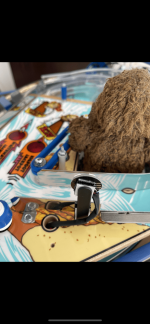

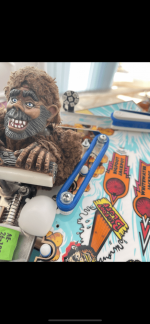

Fitted new plastic around Bigfoot.
Test fitted circular ramp and fitted ramp to right flipper.


Attachments

  • 7F7D5922-ED96-46DA-804F-40828A5AC157.png
    190.2 KB · Views: 19
  • FFDB18AC-6CA9-46C2-B499-0B426A64F2CF.png
    199.7 KB · Views: 19
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
With 10 days until power on lol 😂 things are creeping along !

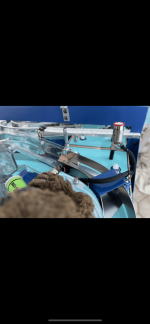

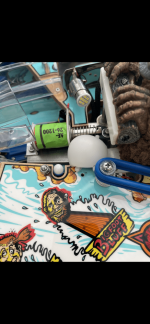

Cleaned and polished the popper chute, drilled and fixed the mantis protectors now that ramps are in place and switches are free and adjusted to register easily.
Tightened upper playfield posts as I forgot I loosened them to get the playfield on lol 😂
Fitted switches to canyon ramp and got it in place finally.
Fixed the popper chute, adjusted Bigfoot cave switch and refitted gi socket that I removed for the hot foot mod led bank.
Also had to drill the new ramp for switch bracket fitting as the predrilled hole was out by a lot.
It now all fits together nicely and diverter works freely, sorted out all the fixings ready to fix ramp in place tomorrow


Attachments

  • C3868CAF-17E9-4B65-9A00-2B1A7E56C893.jpeg
    375.2 KB · Views: 22
  • 41EC7918-EFBD-4988-B018-E954B9D4673B.jpeg
    383.2 KB · Views: 25
  • 573E4665-B8DA-4154-A0F0-B9CC1A6971D1.jpeg
    206 KB · Views: 23
  • 4565509F-ED1E-43B1-A16A-CDA1BA065EC8.jpeg
    156.5 KB · Views: 22
  • 9923FDFD-0F54-45A3-BB63-AE03007B4886.jpeg
    184.3 KB · Views: 23
  • A32DDA50-043E-4E56-BC0D-2BE680CA7070.jpeg
    132.7 KB · Views: 20
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
Shooter rail cleaned.
Rapids ramp also finished and ready to go on, just waiting for a sticker for the left mountain to arrive before I can fit it


Attachments

  • 45268B5E-092F-4EBB-8078-F972D7265C80.jpeg
    357.8 KB · Views: 4
  • 74DB1638-0A2A-4BEC-AA1F-EE710EFBD480.jpeg
    353 KB · Views: 4
  • FCE3F6E5-A0B7-4758-9360-B269CFDC904F.jpeg
    419.4 KB · Views: 4
  • 82F5E38A-E5C3-4A8F-91C1-3D5FB0438289.jpeg
    399.6 KB · Views: 4
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
Due to thicker ramps, existing screws not long enough to join the ramps together, longer screws finally arrived today so right ramp joined and finished.
Shooter rail fixed and the hot foot mode spotlight fitted to shooter rail.
New Bigfoot cave fitted so right side done.
Just a few bits to do and playfield will be finally done.


Attachments

  • E4E582C0-2739-4A70-8AC5-C06EC5EADBC3.jpeg
    196.6 KB · Views: 10
  • B1F6EEE0-BAF4-46BE-8B45-0D56C13B5E1C.jpeg
    138.3 KB · Views: 10
  • B0D96533-3C14-4FE8-86C3-EF8C98CA8C78.jpeg
    157.2 KB · Views: 10
  • 8A8A245A-BD8D-44FA-A5DD-D85F50C3DC57.jpeg
    199.1 KB · Views: 9
  • 4A132022-3130-4DF2-BEE2-F77DD4B45658.jpeg
    164.8 KB · Views: 10
  • Like
Reactions: Rpearsonx and Jib

The seeker

Site Supporter
Oct 13, 2015
1,059
541
113
Northumberland
Do you have the airball reduction thing installed, i believe there is a kit available ive had a few airballs off the standup targets and im looking for a resolve

OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
Do you have the airball reduction thing installed, i believe there is a kit available ive had a few airballs off the standup targets and im looking for a resolve
Which stand up targets ? The 2 either side of the ramp?
I have mantis protectors installed, they prevent the targets from going back too far when installed correctly.
I’m not aware of any other kit for it

  • Like
Reactions: The seeker
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
Sticker arrived, thanks Phil Palmer, fitted to left mountain and fitted to playfield.
Left ramp finally on and last switches and sign fitted on entrance to rapids and canyon.
Waterfall light fitted on left ramp.
Rear mountain fitted but will remove to fit the flasher domes tomorrow now that the flashers have been aligned.


Attachments

  • 74A12D84-D4D2-4716-BDE4-428C2B3C4C57.jpeg
    331 KB · Views: 18
  • C5A966DF-5D2F-4C8B-BD19-01A782171A44.jpeg
    236.4 KB · Views: 16
  • CD820E19-E3E8-43C7-87F0-6BBBE78EB496.jpeg
    246.7 KB · Views: 14
  • B3744BE7-4BD2-4040-958F-00FE6C84130D.jpeg
    175 KB · Views: 15
  • AB660380-1770-40F6-8072-1A5FE0D631C8.jpeg
    183.3 KB · Views: 15
  • E5E605AE-4170-4C94-86F2-0F9C5C69439B.jpeg
    148.1 KB · Views: 16
  • 11BD4F2B-5572-42DF-B998-C45C1C8CD9F9.jpeg
    209.3 KB · Views: 20
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
Had to run the OCD GI power cable to the transformer and rewrap cables.

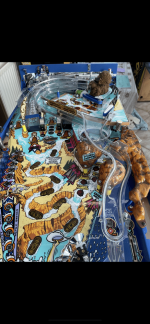

Playfield in at last and looking good.


Attachments

  • 805C34E8-C52B-4C6F-800A-7B09ABBA8B51.jpeg
    183.1 KB · Views: 23
  • 789E1502-0923-47F3-9060-A058EBFBB4B9.jpeg
    233.9 KB · Views: 23
  • 3761C3F8-C058-4C31-AACE-C2722681E29F.jpeg
    250.5 KB · Views: 23
  • Like
Reactions: Rpearsonx and Jb3d
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
Backbox on, powder coated hinges and bolts fitted.
Also affixed 2 amber led strips under the rear glass receiver to light the mountains from above.
Next up, wiring, flippers and testing


Attachments

  • 7002617E-E9AE-4E53-BC8A-82B894371719.jpeg
    97.4 KB · Views: 27
  • 964D35B3-F760-45A0-9A67-A96D13394DA3.jpeg
    159.5 KB · Views: 29
  • 0324F525-6AC9-4BFA-8EB7-FC2ECF11CBA5.jpeg
    155.7 KB · Views: 29

Jb3d

Site Supporter
Jan 23, 2015
344
231
43
Matlock
Alias
John
I’ve just read this thread from the start. What fantastic work. Your skill and patience is outstanding. And thanks for taking the time to photograph and share everything.

  • Like
Reactions: Beowulfz07
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
T
What cabinet decals did you use? These look better than most I’ve seen.

Great work, it’s looking outstanding


Sent from my iPad using Tapatalk
Thankyou 😃
I can get any decal sets for £175 delivered
I’ve had 5 sets and they’re excellent, baywatch, 2 x Tom’s, WH20 and just got a set for Indy 500.
They are spot on colour wise, not thin, very easy to put on and you can seal them quicker with a heatgun and also remove any creases. Far better than the next gen ones in my opinion

  • Like
Reactions: BurnDizzyBurn
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
Wired up the rgb speaker lights and the blue led strip, had some fun and games as the speaker leds are 5v and the strip is 12v but got there eventually.
Pic and quick video but the led strip looks bright and whiter than it does in real life, the speaker leds are the usual any colour etc and there is a dimmer on the strip so i can adjust it so it doesn’t overpower the colordmd


Attachments

  • DBAE5D11-95DD-4D20-A96F-541F9DD3B6D0.jpeg
    129 KB · Views: 10
  • IMG_7317.MOV
    9.6 MB · Views: 0
  • Like
Reactions: Tony
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
Another small update.
Apron furniture cleaned and fitted, shooter guard also done.
Snapped a superband flipper rubber so had to order more which have now arrived and managed to lose my new ribbon cable set which should arrive tomorrow.
Did manage to fire up the driver board which is the first time both transformers and wiring have been tested since doing them, so a huge relief all works ok and ready to connect up the cabinet fully tomorrow and test prior to connecting the playfield once I’ve plugged the upper playfield in underneath.


Attachments

  • D709D368-FF15-4B97-A559-2B180BEC3D43.jpeg
    180.2 KB · Views: 8
  • 9BFDA030-31DF-4BF6-9BAF-F508081AE599.jpeg
    171.5 KB · Views: 9
  • A9798EFF-3323-4E9F-AA56-16762106CE01.jpeg
    196.7 KB · Views: 8
  • 2AB10920-958D-42C5-BE5B-1E41B38501F9.jpeg
    292.5 KB · Views: 8
  • Like
Reactions: astyy and Jib
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
Machine finally on legs, connected up and original foil topper tested and working great


Attachments

  • IMG_7453.MOV
    2.6 MB · Views: 0
  • BA569A81-A50F-4B2C-BFAC-564DDD8DA894.jpeg
    156.4 KB · Views: 5
  • E2E03103-1E16-4CE4-AD4A-38A162B997F6.jpeg
    135.5 KB · Views: 5
  • 6381F8F1-802E-45F4-AFD8-ACAC1530379D.jpeg
    157.6 KB · Views: 5
  • CA206539-C5AA-49FD-8EF3-D97C64D920F1.jpeg
    181.5 KB · Views: 5
  • Like
Reactions: Ant127
OP
Beowulfz07

Beowulfz07

Site Supporter
Jun 10, 2018
432
570
93
Wellingborough
OCD led fitted and none of the led strips worked due to conversion from ac to dc, luckily just a simple reverse of a couple of matrix connectors and all working.
Apron and shooter guard on, foil instruction cards too.
All coils etc tested.
Pinsound remix works and sounds like a new machine and the shaker works well too.
CPR mirror looks absolutely gorgeous.
Just a few tweaks to do once it’s had a few games on it


Attachments

  • 00574DC5-5C16-4F98-9D2D-3522E2F7C321.jpeg
    149.4 KB · Views: 6
  • E67111FE-D7AC-4A6C-82FC-777D4B973E69.jpeg
    167.2 KB · Views: 5
  • 646673B0-B838-4901-AEAB-94B3B60F435E.jpeg
    218.8 KB · Views: 5
  • F2372FAA-6673-46E8-B580-6311B2E20B39.jpeg
    155.2 KB · Views: 5
  • 4E29FA40-7B70-4FEC-BF51-EE19B2489816.jpeg
    180.9 KB · Views: 5
  • 0ABA166D-186B-4A34-A4F2-EB764C49B9D0.jpeg
    218.8 KB · Views: 4
  • 7E345C93-E202-4B9F-9936-4F21A283441F.jpeg
    107.1 KB · Views: 4
  • 7A8CAD54-7EDD-43E7-A24F-121CA91DF55B.jpeg
    105.5 KB · Views: 5
  • CF52BDF3-908F-40F0-99DC-8C824056E0BE.jpeg
    89.5 KB · Views: 5
  • Like
Reactions: Ant127
