Complete Not another WH20 !

Small update,
Coindoor on, new blue start button, serial number decals on, a few bits n pieces and a Titan lockdown receiver decal which I always like on both new and used receivers


Attachments

  • 6F641AAE-709D-4088-B80A-B8A57608AF24.jpeg
    113.8 KB · Views: 45
  • 8C671EA8-5EC5-44D5-A10A-3E5C7912BE02.jpeg
    78.7 KB · Views: 39
  • 70B8339A-1F51-46D9-9938-2DABABB35D18.jpeg
    77.4 KB · Views: 39
  • 8D9F2F80-8BAC-4463-8C09-C9E04192E51F.jpeg
    57.2 KB · Views: 39
  • 46318AD3-91D1-4A2E-B51D-C39C4B62FBBE.jpeg
    84 KB · Views: 37
  • B554B993-4F39-4BE3-A05D-DFBCA27D697A.jpeg
    61 KB · Views: 46
Also put inner art blades on as mirror blades would be a waste on this machine.
Fitted the led flipper buttons and flipper switches.
Cabinet loom has been thoroughly cleaned and repaired where requires and ready to go in for wrapping tomorrow


Attachments

  • 4F391569-BC94-48E1-B78F-E744AC7D8514.jpeg
    137.4 KB · Views: 48
  • 7985763D-4143-4AD6-A295-EF5C0154E4EB.jpeg
    121.9 KB · Views: 44
  • C962C73F-6880-4D66-A4F6-B23AAC0E2E29.jpeg
    107.5 KB · Views: 42
  • 62A68D21-BE0F-4CF0-AFAB-A1F3B6A0C9E9.jpeg
    71.2 KB · Views: 40
  • 63D01D45-55FC-46E7-A189-24FD69662669.jpeg
    93 KB · Views: 49

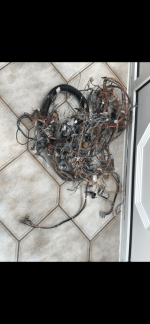

This machine had some major hacks and rewires done to it


Attachments

  • C08DB1AF-02C0-41D1-9D17-5F08B013FF98.png
    200 KB · Views: 41
  • 26B40CB9-B7A4-43A6-82A8-60437FEF5B61.png
    202.2 KB · Views: 42
  • 17038AD9-DFE6-462A-8123-631FA0B88D8D.png
    228.8 KB · Views: 42
The cabinet loom has been completely cleaned and hacked cables replaced with correct colours and new connectors where required


Attachments

  • 1E92C6BA-BB0D-456B-B79E-82AECEC75B40.png
    226.6 KB · Views: 29
  • EEA42FB2-F811-4C6B-88C8-B0AB94E3048B.png
    194.8 KB · Views: 25
  • B111AFB3-04DF-4644-A765-A24FA6A370C6.png
    167.2 KB · Views: 29
Just a reminder of how the cabinet looked when I started.
Today the cabinet is finished.
Got too dark to take a decent pic with the glass in, but the cabinet loom has been wrapped, new speaker cables, shaker cable, power cable for speaker panel lights have been run in with the loom.
Flipper led cables connected and wrapped.
The subwoofer out cable will be added into the loom once the backbox is on.
Coindoor finished and wired up, just missing the coin return flap which I need to source from somewhere.
New side rails and rear glass receiver fitted.
Invisiglass and new lockdown bar on.
So cabinet ready for playfield when done shortly.
Backbox just needs the topper dome fixing in place and the CPR mirror installed


Attachments

  • 7C0DE182-3D74-49E6-9441-EC5049619862.png
    167.2 KB · Views: 40
  • BF5517A6-9A81-4BB8-BB98-3483CC4A4A0A.jpeg
    106.1 KB · Views: 36
  • CD644354-3544-49CD-B7E1-E1710402897E.jpeg
    104.9 KB · Views: 38
  • 154B6570-89A7-4F55-9AFC-0537F29F7783.jpeg
    83.5 KB · Views: 42
Couldn’t resist putting a 9v battery on the coin door connector to see how the coin door lights up and I’m really pleased and it’s certainly better than the rivets that were there before so big thanks to Vimtoman and Collywobbles


Attachments

  • 5B0356D0-FAC1-4577-970F-0A988EDF77A3.jpeg
    119.9 KB · Views: 37
  • F912E23A-B813-4ACC-B827-8F245F0C202E.jpeg
    63.2 KB · Views: 35
Lovely restoration job, not a single part left unturned. If you dont mind me asking, Is this a keeper or this for sale when it’s all done??

Lovely restoration job, not a single part left unturned. If you dont mind me asking, Is this a keeper or this for sale when it’s all done??
Thankyou, and no I don’t mind you asking.
I am hoping to keep this one when it’s done, especially after selling both the TOM’s as soon as they were finished.
But if I do have to sell it will be listed here first,
Thanks
Tony

I finally found the missing coin return flap, it was hidden with the powder coated hinges.
Fitted today so cabinet completely finished and ready for playfield


Attachments

  • 8584ABE5-9004-4CDB-8676-659A8D2F2F4F.jpeg
    105.5 KB · Views: 18
Finished cleaning the lightboard loom, had to replace 3 cables and fit a new connector.
Fitted all the sockets to loom along with all the hardware.
Wrapped the loom and it’s now in the backbox.
Just the cpr mirror to fit once the surround arrives


Attachments

  • FEC962E5-CD36-4FF7-BC33-C7306613C1FA.jpeg
    112.8 KB · Views: 25
  • F7F62741-F608-4B05-9681-7EB11C7FAE57.jpeg
    122.5 KB · Views: 24
  • 3582E291-E678-4D47-AB0F-C8F1B996A4C3.jpeg
    63.8 KB · Views: 29
Finally sorted the trim for the CPR mirror and installed.
Playfield has been stripped and sorted into bags ready for cleaning


Attachments

  • 48D58428-FAC2-402C-8D3E-605AF1631BA9.jpeg
    117 KB · Views: 66
  • 0CD2D1C8-C20F-4141-A426-AA76E420A581.jpeg
    132.6 KB · Views: 61
  • 24A23437-A027-402E-B1DB-1F9BB1B4F6BC.jpeg
    69.4 KB · Views: 56
  • 870B98A0-C59D-487D-AC74-B7ECB1CCADB4.jpeg
    88.4 KB · Views: 62
Very nice, indeed!

Another couple of questions, if you don't mind?

For the painting, did you just use a brush for the blue colour?

Also, who did the WH2O coin door sign for you? I recall seeing on a facebook post somewhere that they would entertain trialling it with the 2 next to the H?

Would like to look at getting one done for my WH2O, if possible.

Very nice, indeed!

Another couple of questions, if you don't mind?

For the painting, did you just use a brush for the blue colour?

Also, who did the WH2O coin door sign for you? I recall seeing on a facebook post somewhere that they would entertain trialling it with the 2 next to the H?

Would like to look at getting one done for my WH2O, if possible.
Hi
Yes the blue was brushed on.
Collywobbles is your man for the WH20 acrylics and a lot more 😃

Playfield stripped and loom ready for cleaning.

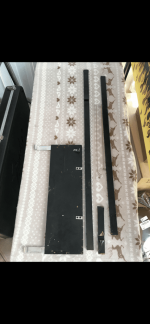

Rails stripped and sanded


Attachments

  • 20BFA3A5-CE01-4993-9A43-8BC77DDB1462.png
    131.8 KB · Views: 32
  • 58FF5D79-4DAF-491C-8ADE-68BDE42BDCA8.png
    105 KB · Views: 29
  • DD0A6F2A-8AC5-4530-9550-C24DC1973BA4.jpeg
    145.7 KB · Views: 34
Playfield brackets, apron and shooter guard powder coated.
Thanks to my wife, Jolanta for putting the decals on so well


Attachments

  • C33795AA-6156-457F-8376-1C0B3C8548A3.jpeg
    315.8 KB · Views: 36
  • 763B7961-85DA-4E6D-8BFE-267F28602C75.jpeg
    187 KB · Views: 30
  • 6837E417-C030-4306-8539-6C905D737F13.jpeg
    206.5 KB · Views: 27
  • 19A57567-2FE2-4C2E-9F5C-E6038D3D420D.jpeg
    209.4 KB · Views: 35
