The Mandalorian Pinball

  • Thread starter Deleted member 2463
  • Start date
Done slight better - I pretty much have ignored the missions and just gone multiball and Hunter..

Loads to do in this game. Although changing the MB with boba fett targets is a grind!



Sent from my iPhone using Tapatalk Pro

Last edited by a moderator:
So the upper playfield on this is fantastic! It’s what the playfield on Bk3K should have been - it’s not a huge area but the skill of hitting the shots esp in multiball is superb fun! I hope they make this a bit more rewarding score wise.


Sent from my iPhone using Tapatalk Pro

So the upper playfield on this is fantastic! It’s what the playfield on Bk3K should have been - it’s not a huge area but the skill of hitting the shots esp in multiball is superb fun! I hope they make this a bit more rewarding score wise.


Sent from my iPhone using Tapatalk Pro
Are you enjoying it as much as you thought you would?

Mine arrived today, but cannot play it until Thursday.

So the upper playfield on this is fantastic! It’s what the playfield on Bk3K should have been - it’s not a huge area but the skill of hitting the shots esp in multiball is superb fun! I hope they make this a bit more rewarding score wise.


Sent from my iPhone using Tapatalk Pro
I think you’re scoring enough already lol 😂
Totally agree, I’m not fond of mini playfields, but I love this, genius to reward you for accuracy, totally transforms the way you play it and needless to say it suits the theme perfectly.

Managed to get this unboxed and almost (needs levelling!) set up tonight!

It’s a Star Wars fan’s dream........And both LEs look amazing together!

Had a few games and wow! Cannot wait to dig deeper!

View attachment 145729

The good the bad and the ugly LOL


Sent from my iPhone using Tapatalk Pro

Managed to get this unboxed and almost (needs levelling!) set up tonight!

It’s a Star Wars fan’s dream........And both LEs look amazing together!

Had a few games and wow! Cannot wait to dig deeper!

View attachment 145729
Can you do me a favour and take a pic of the diverter next to the mini playfield so I can see it’s height relative to the mini playfield where the ball enters the mini PF.
Would be much appreciated

I’m compiling a list of tweaks for Mando from info I’ve seen and on my own machine.
I’ve put a post sleeve on this one under Grogu.
I could hear the ball hitting something every now and then, and then saw on pinside about this post.
After fitting sleeve, no noise and still smooth on orbit.
I’m about to tweak the left rail as the ball doesn’t always return safely to left flipper, it sometimes clips and triggers the left sling.
The ball sometimes gets stuck on entry to the mini playfield, after checking to see if any vertical adjustment of the diverter mech I will gently bend the downward curled section up a few mm so it’s nearer to level with the mini PF when it’s horizontal.
The ball sometimes bounces back out of the diverter and back down the ramp.
I propose to fit a rubber at the end to dampen the ball.
The right ramp entry isn’t as smooth as I think it should be. This is held in place by a bolt under the playfield so you can adjust how much the flap bends and therefore the steepness of entry.
I can see wear starting on the right side of the shooter lane from ball ejaculation.
I’m fitting the Cliffy double protector to eliminate this.
When launching the ball manually with any power the ball skips half way up before entering the playfield - this is a typical AFM thing so will need to adjust the metal platform tho I will leave this until last, once everything has settled, it’s no so much a problem, just annoying.
The main ramp left protector is too short.
Reports of a number of ramps breaking and the cause currently being investigated by Stern but I’d prefer to do something before mine breaks.
The lift up ramp diverter buzzes loudly, I currently wear headphones until I try bending the coil bracket.
To be continued ……


Attachments

  • 2F5CE84E-4CC0-4124-90A1-FD6D45E5C029.png
    205.1 KB · Views: 25
  • B27A8570-4DFE-4B65-82E8-D88D14FD3E07.png
    38.4 KB · Views: 29
The right ramp is now silky smooth, the bolt with the nut to loosen / tighten is shown by the red circle.

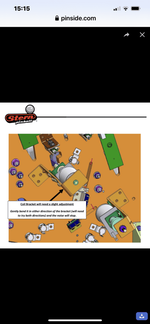

The arrow points to the bracket to slightly bend to stop the buzzing noise from the ramp scoop.


Attachments

  • A31CF5B0-DEA5-41D4-9C14-64F41076E333.jpeg
    110.7 KB · Views: 25
  • FB0EBB41-3A19-4CCD-83D6-5FCD93E8D4A3.jpeg
    120.6 KB · Views: 28
I’ve now got a smooth and safe return to my left flipper from the left orbit exit.
Just remove one screw and one nut from the plastic to expose the rail screw, loosen the screw and push the rail out and tighten.
I used a screwdriver and levered gently on the post rubber.


Attachments

  • C18781FA-EC6E-4B5C-A510-8B5BF54FABF5.jpeg
    136.2 KB · Views: 16
  • B4E4D18B-BA6C-4FC8-BEE7-784E63551D9A.jpeg
    117.3 KB · Views: 15

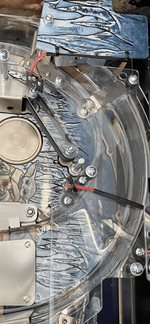

You may not have this problem, but the diverter assembly isn’t very sturdy and held in place by 2 screws.
Frequently the ball would just sit on the diverter at the entrance to mini playfield as the diverter is sitting too low when mini PF is horizontal, won’t ever be a problem when mini PF is vertical.
I gently bent the diverter upwards a few mm.
Now it’s perfect, tho I don’t know how long it will be before it starts dropping again but I’m happy for now.
Still need to source a thin rubber to stick on the back of the drop down piece of the diverter to prevent ball bouncing.


Attachments

  • 621D04DA-85D8-42AC-81B5-35F9A61BCB57.jpeg
    119.1 KB · Views: 17
I’ve just heard back from Cliffy and he has his first ramp fix protector on test now.
Looks far more suitable than the stock one.


Attachments

  • EBAC02DB-B417-44B4-BB6D-A07D71B2AF81.jpeg
    60.8 KB · Views: 15
  • 2E43AE36-E3FA-4B10-93D7-D2EB0AB3698E.jpeg
    128.4 KB · Views: 15

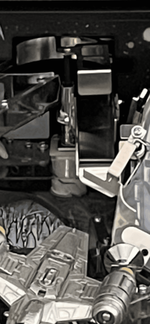

Can you do me a favour and take a pic of the diverter next to the mini playfield so I can see it’s height relative to the mini playfield where the ball enters the mini PF.
Would be much appreciated
Here you go. Thanks for your recommendations, I am going to go through them on the weekend.


More Mando Bescar

Was asked to design something a little more fitting for the Shooter Gauge by @scottydoesntknow and came up with these.
Thanks to Scotty for the idea I may try this on a few other pins when I get some time.

The symbols are the Star Wars Aura beck alphabet saying MANDO

Original

2 Proto’s that have to amend slightly






A tenner posted if anyone fancy’s one and I’ll be at Pinfest on Saturday if you want to meet up.

Col

Played this a lot tonight and I love it. Shots really nice and the theme integration is amazing.

Can you LE owners check something for me, the coil that fires the diverter up is showing on mine and it looks like it would have something in front of it. Is everyone’s like this?


More Mando Bescar

Was asked to design something a little more fitting for the Shooter Gauge by @scottydoesntknow and came up with these.
Thanks to Scotty for the idea I may try this on a few other pins when I get some time.

The symbols are the Star Wars Aura beck alphabet saying MANDO

Original
View attachment 145774

2 Proto’s that have to amend slightly

View attachment 145773

View attachment 145775

View attachment 145776

View attachment 145776

View attachment 145777

A tenner posted if anyone fancy’s one and I’ll be at Pinfest on Saturday if you want to meet up.

Col
I would have but I’ve already ordered this


Attachments

  • F98D7C89-73F0-4BD8-95BB-46ACBB30E52E.png
    80.8 KB · Views: 31
Can someone tell me how you start a 4 player co-op game?

Also, how do you swap game modes (I.e. Impossible Play etc.
