DMD clocks - Colour 2020 version!!

ronsplooter

Site Supporter
Jul 21, 2011
5,668
3,779
113
Nottingham
bigronarcade.blogspot.com
Alias
Chris
mine arrived. all ok. but can’t connect to it. do you just hit the ip address from a browser?


Sent from my iPhone using Tapatalk
Yes Alan, the IP that pops up when you turned it on 👍 I tried using RPI2DMD first but it didn’t work on my iPad but hitting the IP direct is fine. Should take you straight to the settings page.

  • Like
Reactions: Stags6969
OP
Paul

Paul

Staff member
Oct 5, 2012
9,078
4,551
113
Birmingham/Bristol
www.pinballinfo.com
Alias
Toibs
mine arrived. all ok. but can’t connect to it. do you just hit the ip address from a browser?


Sent from my iPhone using Tapatalk

Check the IP address on boot (after the boot logo)... type that into any browser connected to the same network... alternatively you may be able to connect by typing in \\RPI2DMD in a browser...


AlanJ

Beta Tester
Dec 27, 2017
2,197
2,020
113
Leeds, West Yorkshire
Alias
I am me
i just get a not responding message. i’ll reboot my ****tysky router and bt whole home wifi and try again


Sent from my iPhone using Tapatalk


AlanJ

Beta Tester
Dec 27, 2017
2,197
2,020
113
Leeds, West Yorkshire
Alias
I am me
All working fine. many thanks [mention]Paul [/mention]



Sent from my iPhone using Tapatalk


johnwhitfield

Site Supporter
Jul 21, 2011
3,215
2,205
113
49
new cross
Alias
John Whitfield
Developed a bit of an issue. Just discovered it’s not theft proof. Has somehow migrated upstairs from my games room.

Apparently it’s now the go to accessory for 13 year olds and is competing with the dodgy led lighting


Attachments

  • 2AC114BF-9CC0-46BF-9BE7-0FBC678AF6D7.jpeg
    61.9 KB · Views: 55

MadNat

Registered
May 11, 2019
524
551
93
Warwickshire UK
Had a 30 min play around with mine last night. I put a TZ style font on it (you can download it here: https://famfonts.com/twilight-zone/). Looks good at 27 point, with the animated_1 pattern.

To install the font connect to the RPI2DMD shared drives from a computer on your network, and copy the dowloaded .ttf file into USBKEY->fonts->Polices directory. The font TWYLZW_ should then show up as a selection (might need a reboot)


DanLewell

Site Supporter
Jul 21, 2011
740
795
93
45
Northampton, UK
Pictures, or it didnt happen.... :)

Mine is back in its box until christmas day so I cant play with it now. Lou wants to wrap it up to give to me as she hasn't got me anything else o_O

OP
Paul

Paul

Staff member
Oct 5, 2012
9,078
4,551
113
Birmingham/Bristol
www.pinballinfo.com
Alias
Toibs

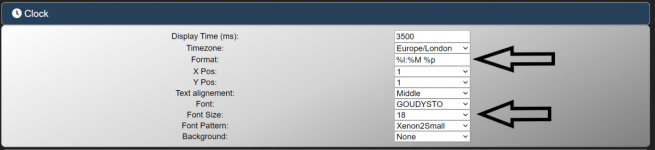

Has anyone figured out the time format needed in Settings in order to make the clock display 12 hour clock rather than the 24 hour clock?

I havent tried it however i can try this tonight... i am advised it's ""% I:% M% p"".. Let me try it though first, else you may loose access... I can re-image a clock in a few mins...


MadNat

Registered
May 11, 2019
524
551
93
Warwickshire UK
Wow how do you change the font?
Changing the font is easy - just use the RPI2DMD web config page from your phone or a web browser on your LAN. When you power on your RPI2DMD - the IP address should pop up briefly. Write that down, then enter it on any web browser - you see a screen like this:
Screenshot 2020-11-10 at 09.13.48.png

Click the settings button and you'll see the sections to setup Clock and Date.
Screenshot 2020-11-10 at 09.15.38.png

In each of those you can change the font, font size, alignment, animation, etc.
Screenshot 2020-11-10 at 09.16.27.png

Just make sure you press the save button to keep your changes.

  • Like
  • Love
Reactions: Hullshark and astyy

MadNat

Registered
May 11, 2019
524
551
93
Warwickshire UK
@MadNat - where do you load the downloaded TZ font? "connect to the RPI2DMD shared drives" where do you find those please?
I have a Mac - it was quite straightforward - another little video showing what I did:

After you've copied the file you might need to restart your clock to get the new font to show as an option. The font needs to be .ttf format I believe

  • Like
Reactions: Paul

Mfresh

Site Supporter
Oct 7, 2012
1,630
1,628
113
Bucks, Paul Rubens
www.pavlovpinball.com
Alias
Mr Sinister
Interesting.
On Windows 10 I can see the RPI2DMD device on the network, but attempting to access it just results in the message:

"\\RPI2DMD is not accessible. You might not have permission to use this network resource. Contact the administrator of this server to find out if you have access persmissions.

The network path was not found"

Doh!


MadNat

Registered
May 11, 2019
524
551
93
Warwickshire UK
If you are using windows - you should be able to enter a user name and password when you double click RPI2DMD in File Explorer.

If it doesn’t ask for a user and password, you may have accidentally tried with your Windows login details (which are not correct). So... change the credentials.

Search “cmd” for windows command prompt
Then enter:
rundll32.exe keymgr.dll, KRShowKeyMgr

Edit any entries that have your RPI2DMD ip address replacing username with pi, and password with raspberry

Click “A website or program credential”

If there aren’t any entries - add a new one, with the ip address of your RPI2DMD in “Log on to” and same username and password as above, and again select “A website or program credential”

Click OK and then Click Close

Now you should be able to get to USBKEY when you double click RPI2DMD in Network view of File Explorer

  • Like
Reactions: Paul
OP
Paul

Paul

Staff member
Oct 5, 2012
9,078
4,551
113
Birmingham/Bristol
www.pinballinfo.com
Alias
Toibs
Hi all,
Almost completed the build on the remaining 20ish clocks, so will be sending out the PM's tomorrow (hopefully) for the last batch from above. This will include any outstanding requests on the list in the second post.
Looking to ship these Monday or Tuesday next week (as previously mentioned, and especially aty this time of year, i will not ship these on a Thursday or Friday, as they may well spend all weekend in a van or a cold warehouse!).
If anyone is outstanding any payment, it would be appreciated if this could be paid now :)
Please wait for the PM to arrive, since it contains important information required (even if you have already supplied it) since I have a finely honed production line here, and certain things need to be in a certian order, else it breaks things :D
Thanks for everyones patience!
Cheers
Paul

Last edited:

MadNat

Registered
May 11, 2019
524
551
93
Warwickshire UK
Hi all TZ fans - to double down on the TZ font - I've created a Spiral pattern for good measure! Copy the PatternSpiral.gif file into USBKEY->fonts directory of your clock.

You should then see Spiral as a pattern in Date and Time settings, select and be hypnotized by your DMD Clock!
