17 sent. I need to send mails to the last 2 people, since theirs were delayed (i had to install new cards due to my PC corrupting the micro SD cards) These will be shipped this week.

I am hoping to complete the build of the last 30-odd over the coming week...

ONE IMPORTANT NOTE TO THOSE THAT I HAVE ADVISED HAVE BEEN SHIPPED

I was advised this morning that the interface card had become detached (Red board). I have put in place a fix on the later ones of the first run, and also on all future builds, however to those that receive today/tomorrow, please ensure that between the rear and LED panels of the unit that the Red piggyback board which plugs into the Pi is still in place (just give it a push to make sure....
The Red board should be like this :



PLEASE check this before powering on...!!

As io mentioned, design has been modified since the early builds to bolt both of these down. Obviously i didnt think there was an issue, however have now had two reports of this :( Goes to show - no matter how well you pack things, the delivery process can be brutal!

Apologies 😢
Paul

  • Like
Reactions: J85M

J85M

Site Supporter
Feb 24, 2017
552
359
63
UK
The Red board should be like this :

View attachment 122760

View attachment 122761

PLEASE check this before powering on...!!

As io mentioned, design has been modified since the early builds to bolt both of these down. Obviously i didnt think there was an issue, however have now had two reports of this :( Goes to show - no matter how well you pack things, the delivery process can be brutal!

Apologies 😢
Paul
No problem here Paul plugged it in and works like a dream, packaging was first class!!

The board coming out was probably due to the Ace Venture handling of the courier.

  • Sad
Reactions: Paul

David_Vi

Site Supporter
Sep 3, 2019
340
230
43
Colchester
Alias
DaveTheTrain
Mine should arrive today but I'm at work 😭
Silly middle shifts all week so maybe I won't see it for a while unless they hide it somewhere

  • Sad
Reactions: Paul
OP
Paul

Paul

Staff member
Oct 5, 2012
9,078
4,551
113
Birmingham/Bristol
www.pinballinfo.com
Alias
Toibs
Ok, so Here's a Usermanual that i have translated from French, and should explain the build and operation of the clocks.

It also explains how to change configurations. PLEASE take care, since some changes WILL disable Wireless/display parameters!!

If you are connected to the network you should be able to access by going into any machine/phone connected to the network, opening a browser, and typing "//Rpi2dmd"


Attachments

  • RPI2DMD_User_Manual.pdf
    1.8 MB · Views: 39

Mfresh

Site Supporter
Oct 7, 2012
1,630
1,628
113
Bucks, Paul Rubens
www.pavlovpinball.com
Alias
Mr Sinister
Jeez, DX are as bad as all the other couriers. Just checked online as mine has not turned up and there is the usual b**locks about "we tried to deliver and have left a calling card", but of course been in here all day and they never came here and there is no calling card. Tried to reschedule online and after going through the reschedule process it says sorry we can't resechedule, call our customer service team. I hate courier companies! GRRRRRRR.

Hope those of you that have received yours are enjoying them!

  • Like
Reactions: Neil McRae

David_Vi

Site Supporter
Sep 3, 2019
340
230
43
Colchester
Alias
DaveTheTrain
Jeez, DX are as bad as all the other couriers. Just checked online as mine has not turned up and there is the usual b**locks about "we tried to deliver and have left a calling card", but of course been in here all day and they never came here and there is no calling card. Tried to reschedule online and after going through the reschedule process it says sorry we can't resechedule, call our customer service team. I hate courier companies! GRRRRRRR.

Hope those of you that have received yours are enjoying them!

Opposite here, I'm still at work but it claims its been delivered and is 'in a suitable place'.
I look forward to getting home after 2200 and seeing what that means..

OP
Paul

Paul

Staff member
Oct 5, 2012
9,078
4,551
113
Birmingham/Bristol
www.pinballinfo.com
Alias
Toibs
Jeez, DX are as bad as all the other couriers. Just checked online as mine has not turned up and there is the usual b**locks about "we tried to deliver and have left a calling card", but of course been in here all day and they never came here and there is no calling card. Tried to reschedule online and after going through the reschedule process it says sorry we can't resechedule, call our customer service team. I hate courier companies! GRRRRRRR.

Hope those of you that have received yours are enjoying them!
Grrrrr... Sorry Paul :(


David_Vi

Site Supporter
Sep 3, 2019
340
230
43
Colchester
Alias
DaveTheTrain
Mine arrived!

It's lovely but I do have an issue.
I've fiddled with the options, just changing fonts and gifs and now the screen is blank.
It did it earlier and I unplugged it and plugged back in and it came back to life.

I can still access the settings on the wifi so it's alive
Any ideas?

Update :solved..
The brightness settings turn the screen off past 2300 😂

Last edited:

Andypc

Site Supporter
Oct 24, 2015
446
353
63
London, UK
Hi Paul,

Mine was working perfectly, but the display went off when I connected to my Wifi. I have checked and I could still connect to it and the brightness was set to 25, but the display was still blank. Looked like it lost the panel settings. I used the default setting from the manual and it came back on. Just want to check these are the correct setting.

Last edited:
OP
Paul

Paul

Staff member
Oct 5, 2012
9,078
4,551
113
Birmingham/Bristol
www.pinballinfo.com
Alias
Toibs

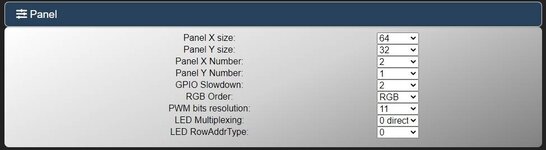

This is from the config file, however covers the bits above......

Panel_XSize=64
Panel_YSize=32
Panel_XNumber=2
Panel_YNumber=1
GPIO_Slowdown=2
RGB_Order=RGB
PWM_Bits=11
LED_Multiplexing=0
LED_Rowaddrtype=0
Custom=

Please remember - these Panels are set by me to be off between 23:00 and 07:00....

# Brightness vs time Configuration ( ex Panel_Brightness_6 mean from 6 to 7 o'clock)
# Value is percentage of brightness. Range is from 0 to 10 by step of 5
Panel_Brightness_0=0
Panel_Brightness_1=0
Panel_Brightness_2=0
Panel_Brightness_3=5
Panel_Brightness_4=0
Panel_Brightness_5=0
Panel_Brightness_6=0
Panel_Brightness_7=10
Panel_Brightness_8=10
Panel_Brightness_9=15
Panel_Brightness_10=15
Panel_Brightness_11=20
Panel_Brightness_12=20
Panel_Brightness_13=20
Panel_Brightness_14=20
Panel_Brightness_15=20
Panel_Brightness_16=20
Panel_Brightness_17=15
Panel_Brightness_18=15
Panel_Brightness_19=10
Panel_Brightness_20=10
Panel_Brightness_21=10
Panel_Brightness_22=5
Panel_Brightness_23=0
Gif_Cat_12=disabled
Gif_Cat_13=disabled
Gif_Cat_14=disabled
accordion-1=on
Save=Save


J85M

Site Supporter
Feb 24, 2017
552
359
63
UK
Cheers Paul. 👍

I checked with Anna if I could keep it in the kitchen and got a resounding “of course not it’s the most hideous thing I’ve ever seen”. 😂 (and this is from a woman who chose those curtains)

View attachment 122791
I’ve had the exact opposite reaction when it arrived and I unboxed my misses said “what is that?” So I replied “its a clock babe” to which her eyes rolled a little and said “do I wanted to know what you paid for that” to which I said “probably not” lol.

But then the kids all sat down for about 20-30 minutes in silence watching it cycle through animation after animation (my kids are never sat still or quiet, now she’s loves the thing and even commented “well that’s worth whatever you paid” :D

OP
Paul

Paul

Staff member
Oct 5, 2012
9,078
4,551
113
Birmingham/Bristol
www.pinballinfo.com
Alias
Toibs
My clock is on the Pinball circuit breaker - so when i want to play it all goes on, no matter what time.

On the "old" clocks that would work... the newer ones may complain as it's a Pi (therefore Mini PC )... so likes to be shut down nicely. We will see how long you can gkeep it going before you need to re-write the microSD card ;)


Monkeyboypaul

Site Supporter
May 29, 2013
4,583
2,722
113
Riccall, North Yorks.
Alias
Paul G
On the "old" clocks that would work... the newer ones may complain as it's a Pi (therefore Mini PC )... so likes to be shut down nicely. We will see how long you can gkeep it going before you need to re-write the microSD card ;)
ah - that's quite an important factor.

So we have to open the clock's URL and 'shut it down' every time? That's not going to be practical. I might copy the SD and keep a back-up :)

OP
Paul

Paul

Staff member
Oct 5, 2012
9,078
4,551
113
Birmingham/Bristol
www.pinballinfo.com
Alias
Toibs
As a clock they arent really designed to be switched off and on daily... Hence why the on/off times for the display... (as to not disturb people)....

I did turn on the mature gifs...

To be fair they arent exactly XXX-rated by modern standards. Just probably something that you wouldnt want your Grandma to see :D

However that does give me a wonderful idea for a new "add-on pack" :rofl: ;)


Stags6969

Site Supporter
Sep 7, 2018
360
229
43
Mansfield
Alias
Real Name - Paul Billings
Clock has arrived 😀
Many thanks Paul.
Did have the same issue as @Andypc above, where it lost the panel settings. This then required a hard reboot, as the soft reboot wouldn’t bring the panels back to life, even after putting the settings back in.
All good and looks great.
Just need to get a socket installed at high level and mount the clock.


MadNat

Registered
May 11, 2019
524
551
93
Warwickshire UK

Very exciting...


Fubar

Site Supporter
Feb 5, 2020
179
104
43
Cambridge, UK
Alias
Thomas
On the "old" clocks that would work... the newer ones may complain as it's a Pi (therefore Mini PC )... so likes to be shut down nicely. We will see how long you can gkeep it going before you need to re-write the microSD card ;)
Should be fine in my experience. If feeling paranoid you could set the filesystem to be mounted readonly.
