since the epoxy worked nicely as glue, why not try the rest with epoxy as well, makes it a little bit easier to close most gaps as well

first test fitting all the inserts and numbering them and also marking orientation

aHR0cHM6Ly9vLnBpbnNpZGUuY29tL2EvNzIvNDkvYTcyNDlhZGE4ZmY3NDU0ZWRkMzg3M2VlZTUwMWI0YWVlZDQwZmFmZi5qcGc


fixing the epoxy with UV light

aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzIvZmMvODUvMmZjODVjNTdhZjM1ZWEyODI1NTE4YzAxYzNiN2ZjNTcwZjhkNjEyNC5qcGc


first batch fitted, next up sanding them flat (while printing some more inserts
)

aHR0cHM6Ly9vLnBpbnNpZGUuY29tL2EvMWMvYjgvYTFjYjhjODRjMGM2NTZmZWFkNGNhNTZiNTRhNTUzYWNhYmFkYmJjNS5qcGc


aHR0cHM6Ly9vLnBpbnNpZGUuY29tL2UvZDQvOWUvZWQ0OWUyNjVlZTU5NmNiM2Y0M2QzN2QyZThlNDE2MmY1MjhjZWU5NS5qcGc


aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzUvYTYvMGQvNWE2MGQ0NzE2MWEyYmU5MjVjYWM4ZTRlNTVmYjA4ZTgyMzhjYWJkYi5qcGc


aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzAvNDEvNzgvMDQxNzg5YTlmMzk5OGVkY2I0YTBiZDAxZjY0NDNhZGY5ZDcxYzcxYi5qcGc


getting all the inserts in and starting with sanding

aHR0cHM6Ly9vLnBpbnNpZGUuY29tL2EvMDkvOTcvYTA5OTczY2NkZmVkYjRiN2E5NWRlZjcxYTU1NGI5ZjgwODYzOGFkMC5qcGc


aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzQvNmUvYTIvNDZlYTIxZDQ3ZTE1N2NhY2YxNjhmZTU0ZDdhMjRlN2RlYjI4ZDZmZC5qcGc


aHR0cHM6Ly9vLnBpbnNpZGUuY29tL2MvOGYvMWYvYzhmMWYwNTMwOWM2MjcwMmNiNmMzMTY5OGU2MzAzNzYyZDAwMGMwNy5qcGc


Almost ready sanding, the inserts are flush with the playfield, all large gaps filled.

now i just need to fill the last tiny gaps

aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzYvMzYvMGUvNjM2MGU0MzhmZjhkMjZkNzYxZmQ0N2Y4MWI3OTg0MTAxNGNlZWRkNi5qcGc


aHR0cHM6Ly9vLnBpbnNpZGUuY29tL2QvMzYvZTIvZDM2ZTJkNmJmMGIwMDQ5YmJjZDc4MGY5YmRhNTY0NDE0NDFhMmEwOS5qcGc


aHR0cHM6Ly9vLnBpbnNpZGUuY29tL2MvNDUvNTQvYzQ1NTRkYzRiNWY3NWNjMGQzZTBlY2ZiNGUzMWFkNDAwM2Q0ZjAxYS5qcGc


aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzIvNTkvYWIvMjU5YWJkZWVmNDI3YzRiMjcxZGU0Yzc3ZTc0NjQyMzcyMWYzNWE3Yy5qcGc


aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzUvZWMvNTgvNWVjNTg0ZjQ2NDI3ODdlOTRhMjBlMjc0MjdkZGMwYmUzZjRjMzI5MC5qcGc


aHR0cHM6Ly9vLnBpbnNpZGUuY29tL2EvZmQvM2IvYWZkM2I4MDNhNWMyNTY3MTc2ODEwNDY0NTQ4OGMwOGE0YmJmZGI3My5qcGc


aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzAvMTAvNzEvMDEwNzE3MjY2ZjJlMmFjNzAxOGRkZjNjN2YwMTQ5OGYxYzNlMmM4YS5qcGc

OP
meesterpieter

meesterpieter

Registered
Joined
Jul 7, 2019
Messages
47
Location
The Netherlands
reassembling the playfield

the targets on the left are being replaced with droptargets

aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzEvNGUvMjgvMTRlMjgyMDg5MjdmMjNlNWI3N2VkYmM5NjUwZGMxZWY0ZGQyN2IyOC5qcGc


assembled the subway and scoop. i had to modify the assemblies a bit so they would fit.
the subway goes under the playfield where some of the inserts are at, i'll have to make some changes to the subway later to make some room to fit the LED's there. and i also need to make a switch near the entrance to register the ball entering of that side.

2021-11-04 16.04.13.jpg
2021-11-04 16.04.17.jpg

it does all fit after some modifications, but next time i'd better keep a little more room for all the assemblies when designing



2021-11-05 09.09.30.jpg2021-11-05 09.32.50.jpg2021-11-05 09.56.47.jpg2021-11-05 09.56.58.jpg2021-11-05 10.13.20.jpg2021-11-05 10.13.27.jpg


Attachments

  • 2021-11-04 16.04.13.jpg
    2021-11-04 16.04.13.jpg
    119.8 KB · Views: 1

Asiapinball

Site Supporter
Joined
Aug 14, 2020
Messages
81
Location
near Hexham
it was time to disassemble and get ready for the next phase, getting all of the playfield holes in and start on getting the game elements in.

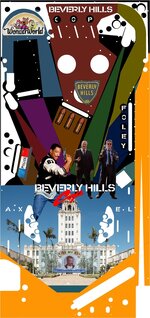

took everything off untill the bare wood, and i've been busy on making all the holes in the board with a router. i've made some slight changes , mostly to the popbumper layout and the target bank in front of it because i didn't like the original dynamic, so i've put those a little closer together and the target bank at a slightly different angle.

i know it would've been easier to sand the simpsons board but i really wanted to learn how to make my own board, since i'm hoping there will be more after this first version. i did make some slight errors while routing but nothing serious. also i didn't make the holes for the lighting yet since im not doing those (yet) and before i'm drilling all the holes for mounting all the parts and screws i'll first be checking fitment and how things work out with my changes.

making the shooter lane took a few tries with a normal straight milling jig, put some small blocks under it to give it a slight angle since the start is about 6mm lower then the end, and it came out pretty nice.

so next up is sanding the board to get some smoother edges, making some corrections to the small errors i made, and then fitting all the parts so i can start drilling some more holes


aHR0cHM6Ly9vLnBpbnNpZGUuY29tL2UvMzYvYjgvZTM2Yjg5YjQ4YzQyNGI0NGU5MmQwNzJiZTg1MTBlYWVlMThkZWVkMS5qcGc
aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzEvNTUvZTUvMTU1ZTUyYjI3YTQ3Yjg1ZmQ3MTdkZGExMTk5ZmVmNTk4NTdlNmFmZS5qcGc
aHR0cHM6Ly9vLnBpbnNpZGUuY29tL2YvZDQvMzIvZmQ0MzI1ZjZiNzQ5MmQzZTk5MGJlNmViMzMyMzI4MzRjODY4ZGEzYy5qcGc


after that i've been busy mounting some ballguides and stuff, making it fit nicely looks easier than it actually is


also picked up a nice empty maverick cabinet to fit my project in, i'll need to source some more parts to make it complete but that'll come later

aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzkvMjAvMzgvOTIwMzgzOGU0MDM2OTBhYmYyOTU0YjU4OTk4ZjZmNGQ5NmQzYTUwYi5qcGc


aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzAvN2MvYmMvMDdjYmNhNDNkMTcwNDI5ZDBlYjNkOTZlMTVjYThjMjU5Yjg0N2UyOS5qcGc


my cabinet didn't have hinges, and late data east / early sega hinges are apparently unobtanium, so ive made a cardboard model so i can cut make my own sometime. also repainted the rusty old coin door i already had, so i can use that on my cabinet

aHR0cHM6Ly9vLnBpbnNpZGUuY29tL2YvODAvNmMvZjgwNmM1ZGE0NzZmN2E4Njg2NThmNGUyNzBhNTg4YWRmZjM3MDNmZC5qcGc


and been busy building up the playfield, i already regret some of the adjustments i've made to the popbumbers, because now i'll have to make all sort of changes to the mounting of the ramps, ballguides etc

also found out that sometimes the location of a part on top of the playfield doesnt have to be precise, but is has to be to fit it all right on the bottom


anyways, sometimes im thinking "why didn't i just sand off the simpsons playfield" and offcourse i still can, but i'm learning a lot and im not planning on this first playfield to be the final version for my game.

aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzMvOTAvOTEvMzkwOTE3MTIzNjQ0MzhiMzNkZmIzYTAxMGNlN2NiNjMzNGE2NWY1OC5qcGc


aHR0cHM6Ly9vLnBpbnNpZGUuY29tLzQvOTIvZGIvNDkyZGJjZDQyYmNhNTJjYmM5NDhlMWRmYjMyZjU5ODc1YzViNDRmZi5qcGc
Great project. I have loads of parts from several baywatch I parted out years ago including hinges lock bar and mechanism side rails power switches and box transformer basically everything other than the wooden cabinets. The lock bar and side rails were newly powder coated too as I had a huge batch done at once and put these in at same time. Let me know what you need and I will get pics and prices. Also playfield parts too.


AlanJ

Site Supporter
Joined
Dec 27, 2017
Messages
4,340
Location
Leeds, West Yorkshire
Alias
Alan
Great project. I have loads of parts from several baywatch I parted out years ago including hinges lock bar and mechanism side rails power switches and box transformer basically everything other than the wooden cabinets. The lock bar and side rails were newly powder coated too as I had a huge batch done at once and put these in at same time. Let me know what you need and I will get pics and prices. Also playfield parts too.
ooh sounds exciting. i’m after cab parts too if any left over please


Asiapinball

Site Supporter
Joined
Aug 14, 2020
Messages
81
Location
near Hexham
ooh sounds exciting. i’m after cab parts too if any left over please
Alan,

Just PM me a list of what you need as there is plenty so no issue about waiting for stuff to be left over. I parted out 4x Baywatch and 3x Batman Forever when I lived in Malaysia. The cabinets had been eaten away by termites but everything else was good. It is easier to list what I don't have (i.e. just cabinets, MPU boards unless you want battery leakage damaged ones and I don't think I have any DMDs left as I sold them years ago and literally a bucket of playfield metal went AWOL in the move home). Surprisingly the playfields were OK too - clearly termites don't like hardwood ply.

I will also start a new thread rather than hijack this one.

Paul

OP
meesterpieter

meesterpieter

Registered
Joined
Jul 7, 2019
Messages
47
Location
The Netherlands
almost everything back together
2021-11-12 16.12.26.jpg

mounting a lot of new sensors, just need to make a sensor on my 3d printed subway and another 1 or 2 in the ballthrough.
dismantled the old arduino wiring so i can use that to connect my cobrapin controller

i have an autokicker but since i'll have to line that up with the plunger and also need to make some cuts in the playfield i'll leave that for now, maybe i'll add it later if i miss it.

next up adding the lights where i can, modyfying the subway so i can fit some lights above it and wiring up all switches

2021-11-12 16.12.19.jpg
2021-11-12 16.12.12.jpg


2021-11-12 16.14.20.jpg
