Shadow re-decal, wiring weirdness ???

[DRD]

Have decided to bite the bullet and re-decal the head of my shadow. When I bought the game it came with head decals that the previous owner didn't get round to fitting



there is a flywire between J126 pin 11 and j122 pin 5 on the solenoid board



Is this normal, or some dodgy hack please ?

Thanks



[replicas]

It's definitely not normal.



[DRD]

The game worked 100 per cent

Could I ask a shadow owner, perhaps @mark9 if he is around, to drop a picture of these connectors onto the website so i can see what should be there

Thanks



[mark9]

Yes can do but I'm out at the minute.



[DRD]

Thanks Mark.



[mark9]

Mine has the link too.



[Matt Adams]

So does mine, weird, never noticed it before!



[DRD]

thanks guys. It actually looks "factory" as the wire is longer than the others to allow this looping

But it also looks wrong

Three working shadows wins the debate though

​



[Paul]

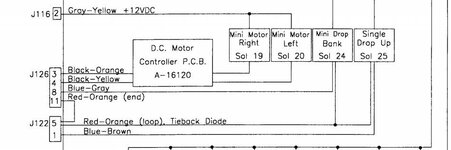

Deffo standard - It's in the Manual!!!



[DRD]

This spindly little wire is hanging on by its last strand, so the first unintended consequence of the head decal will be a repinning job
