Interesting. I have a different style head on mine.
I can see how stencilling looks better than decals.
I might give it a go on Haunted House.
I can see how stencilling looks better than decals.
I might give it a go on Haunted House.
Pinball info
Register a free account today to become a member! Once signed in, you'll be able to participate on this site by adding your own topics and posts, as well as connect with other members through your own private inbox!
Complete Space invaders ( The reborn )
- Thread starter carl lawrence
- Start date
OP
OP
Very very small update ! Not so much as lost mojo for pinball more like other interests got in the way and having no time to spend ...
After clear coating the head it was time for the cab ..
Looks ok ?

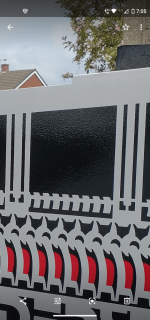

NOT ... Let's have a closer look at the clear coat.
ORANGE peel , so not happy !
Only one way to sort this sand down and repeat . So I Sanded down using 1500 grit which was nerve racking . This time reducing the clear coat . This time it came up a really nice flat mate finish
I so hate clear coating now arrrrrr (sorry no pic as I am a little ....) Yep back sanding again .This time I set my gun up with more pressure , still getting a mate finish , so changed my gun after the first coat from a 1.2 mm , to a 1.4 mm . Wow what a big difference that made for me it went on loads better . By this time it was about 8 at night , good job I had my lights on , anyway here is a pic just after I pushed it back in , this time it has a nice shiny finish on it
After clear coating the head it was time for the cab ..
Looks ok ?
NOT ... Let's have a closer look at the clear coat.
ORANGE peel , so not happy !
Only one way to sort this sand down and repeat . So I Sanded down using 1500 grit which was nerve racking . This time reducing the clear coat . This time it came up a really nice flat mate finish
I so hate clear coating now arrrrrr (sorry no pic as I am a little ....) Yep back sanding again .This time I set my gun up with more pressure , still getting a mate finish , so changed my gun after the first coat from a 1.2 mm , to a 1.4 mm . Wow what a big difference that made for me it went on loads better . By this time it was about 8 at night , good job I had my lights on , anyway here is a pic just after I pushed it back in , this time it has a nice shiny finish on it
End result looks well worth the extra effort
OP
OP
I can’t wait to see this one all back together, what a fantastic job you have done so far Carl.
Looks incredible mate @carl lawrence
Wish I had even a little bit of your joinery and painting skills, awesome work!
Wish I had even a little bit of your joinery and painting skills, awesome work!
OP
OP
I wish I had some painting skills too Chris , if I can do it anyone can !!Looks incredible mate @carl lawrence
OP
OP
White vinegar and salt time to get ride of some more rust . Dumped some earthing connections things in the vat .No pic of before I put them in the tub ,but here is a pic when I pulled one out
used a small brass wire brush , the ones you clean up spark plugs on your car !
cleaned up the right side ,now for the left ,then flipped it round and start on the backside !!
They all clean up like new , time for a cup of tea .
Came back and WTF
was not expecting that !! Don't know what happened weather it was a reaction to the wire brush or what , but a quick polish sorted that out!!
This is a pic showing the rust that came off the little things .
placed a few items in the cab to see how it looks !
As you can see I spayed the base black , to be honest I wish I didn't spay it at all and left it as it was ,but it's done now ,so it will have to grow on me
used a small brass wire brush , the ones you clean up spark plugs on your car !cleaned up the right side ,now for the left ,then flipped it round and start on the backside !!They all clean up like new , time for a cup of tea
.Came back and WTF
was not expecting that !! Don't know what happened weather it was a reaction to the wire brush or what , but a quick polish sorted that out!!This is a pic showing the rust that came off the little things .
placed a few items in the cab to see how it looks !As you can see I spayed the base black , to be honest I wish I didn't spay it at all and left it as it was ,but it's done now ,so it will have to grow on me
OP
OP
A little bit of a update !
Form the above picture shows the speaker I was intended to fit but I noticed it was only a 4ohm speaker not a 8 ohm Do'h back to the drawing board !! Just can not find these speakers in England anymore but you can find load's in the states .I have two 8 ohms speakers a really rusty (took know pic of it because it was that bad ) one and a not to bad one but with a big hole in it but works pretty well
so we clean the rusty one up to see if it cleans up ,and it did ,than we gave it a bit of a spray with some paint
its missing it's writing on the magnetic ,will have to think of how to do that !
Anyway a bit more work on the cab moving wires the old one to the new
.After cleaning and polishing more bit and bods it was time to fit the new side rails I bought from pinball center , as you may or may not know the new bach does not fit
so cut the story short I ended up fitting the old ones back on after a bit of TLC
and them the lockdown bar to
Form the above picture shows the speaker I was intended to fit but I noticed it was only a 4ohm speaker not a 8 ohm Do'h back to the drawing board !! Just can not find these speakers in England anymore but you can find load's in the states .I have two 8 ohms speakers a really rusty (took know pic of it because it was that bad ) one and a not to bad one but with a big hole in it but works pretty well
so we clean the rusty one up to see if it cleans up ,and it did ,than we gave it a bit of a spray with some paintits missing it's writing on the magnetic ,will have to think of how to do that !Anyway a bit more work on the cab moving wires the old one to the new
.After cleaning and polishing more bit and bods it was time to fit the new side rails I bought from pinball center , as you may or may not know the new bach does not fit so cut the story short I ended up fitting the old ones back on after a bit of TLC and them the lockdown bar to
OP
OP
Time to fit the Light board , well I decide not to fit the one it came with so i fitted the one I had spare which was in better condition
Quick clean with one stop pinball white powder
and it comes up pretty nice !
Next step is to fit the door on the head and it’s all done ! ….NOT
First job was to repaint it and clear coat again as it got knocked. When I first did the clear coat it was last summer so the mix was 2/1 plus 10% thinners , this time I had to miss out the Thinner because it was so cold !
Refitted the surrounding lights frame and then the back glass so the last job was just slide the front glass in , so I thought .
the glass did not fit so out came my Chisel and take a Shaving off by hand
luckily you didn’t see this bit ,so it was just a little paint up and them it’s all done !
still have the apron to redo ,just not decided to go chrome or kep it black ,so going to make up this as complete now as I have surf side waiting in the wings to be brought back to life !!
Quick clean with one stop pinball white powder
and it comes up pretty nice ! Next step is to fit the door on the head and it’s all done ! ….NOT
First job was to repaint it and clear coat again as it got knocked. When I first did the clear coat it was last summer so the mix was 2/1 plus 10% thinners , this time I had to miss out the Thinner because it was so cold !Refitted the surrounding lights frame and then the back glass so the last job was just slide the front glass in , so I thought .
the glass did not fit so out came my Chisel and take a Shaving off by hand luckily you didn’t see this bit ,so it was just a little paint up and them it’s all done !still have the apron to redo ,just not decided to go chrome or kep it black ,so going to make up this as complete now as I have surf side waiting in the wings to be brought back to life !!
looks good dude, nice one!!!
Hi, this looks like a great job so far. I am not confident enough to dismantle the playfield. Maybe in the future.Playfield back form Chris
View attachment 59662 View attachment 59663
Ok my plan is
1 complete the Playfield
2 refit it back into the cabinet
3 get the machine 100% back working
4 take it out and start on the repairs to the cabinet
All coils, lamps mec's are still connected to the loom were possible !
Hope this is the right way to do it , if not ,then ops!!
View attachment 59661
Started cleaning out the excess of clear coat out of the star switches View attachment 59664 asked the wife to buy me a metal nail file from boots to do this job
View attachment 59665
View attachment 59666 after about what seems to feel like 3hours ,both star switches are now done . what a pain that was to do
View attachment 59667
If you were to clean the old playfield what would you recommend ?
Also are open to visitors ? Would love to see the work in progress.
Hi, have now seen the finished machine. All I can say is Wow. Excellent. Wish I had your skills. Do you still have it?
