Post Specs.
- Thread starter Nutty
- Start date
Wouldn't the protector go between the plastic post and the nut of the metal post. I.e. take the metal posts off and reassemble with cols protector underneath before tightening up. Then you Wouldn't need new metal posts.
The plastic is in the right place as shown it needs to sit on top of a double bumper post either side (02-4423 I think) the metal plate has to go on top but it barely tightens up as is on the image no way with the plate. I am going to purchase the "missing" plastic to go on top instead of the metal plate

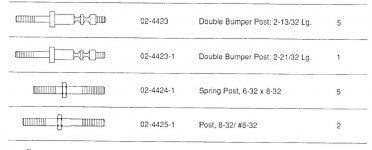

Page 2-36 of the manual shows that you have 02-4424-01 and the ones you need are probably 02-4425-01 but you will also need to change the locknuts to 8-32.
02-4036-1 - Metal post 8-32 bottom stud
<p> Metal bumper post 8-32 bottom stud with 6-32 tap </p> <p> Reference: </p> <ul><li>02-4036-1 </li></ul> <p> </p>
www.marcospecialties.com
Probably switch to this and use a 6-32 bolt from top instead of locknut. But it depends on how it is fitted through playfield. It needs to be same as existing.

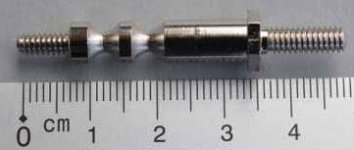

That's an idea the rubber ring would still go around this ok didn't think of using a screw down post instead, I wonder if there is a screw down post with the correct shape for rubber bumper rings, you have made me look around at other posts and I have found this 02-4493 I think its long enough thread on top.
It should be #8 so look for post with an 8-32 thread underside of playfield. Plus a solid post better if you are using a full length rubber post sleeve.
And better to have underside half threaded like the lower of your 2 pics

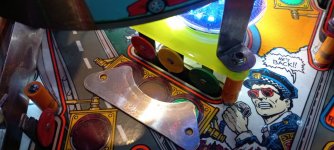

Thanks @Asiapinball I am thinking the exact post does not exist a 02-4493 would be perfect if the bottom 8-32 thread was longer. Here is a better picture showing the metal plate on a 02-4423. The post sleeve post is not part of the issue.

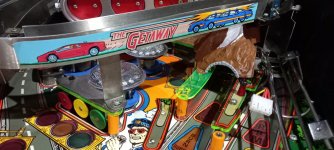

Here is a Getaway with the protector fitted, threads a lot longer.
Here is a Getaway with the protector fitted, threads a lot longer.
Last edited:
Is it going g into a t nut under the playfield or is it a locknut underneath.
...... because the 02-4493 is designed for use with a t nut. Whereas the 4423 is for a locknut under the playfield. Possibly convert if there is enough space for tnut under playfield but that will need drilling to enlarge hole in playfield and locknut version is stronger because locknut version post is really snug in playfield hole.
Unless somebody else tells us ghat the post you really need does actually exist

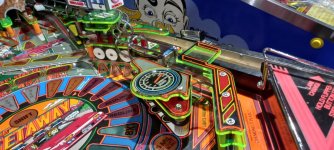

The pic above and this one here is my HS2 that now resides with a neighbour.
I managed to get an original plastic which were quite unobtainable at the time and fitted my flo protector along with a full set I made for HS2.
I can’t remember changing the post but I did have to on TZ for similar reasons.
I managed to get an original plastic which were quite unobtainable at the time and fitted my flo protector along with a full set I made for HS2.
I can’t remember changing the post but I did have to on TZ for similar reasons.
Weirdly I have for a few target protectors and no one else seems to have had a problem so maybe the wrong one.
I’ll go look at my spares see what I have kicking about.
I’ll go look at my spares see what I have kicking about.
Nothing here unfortunately, I did think these might work but the realised it holds the supercharger so it needs something substantial

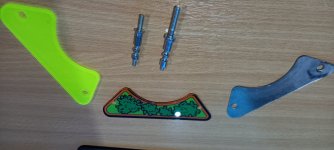

Thanks for looking Col, I have ordered some 02-4493, 02-4423 and some T Nuts along with the plastic so I should be able to sort it out. It is odd as on the image of your old machine you can see the treads clearly come up through a few mm after everything fitted.
Here is a link to the missing plastic.
Here is a link to the missing plastic.

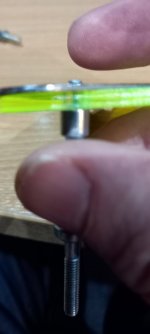

So I got some posts but the one with the longer base screw has the same thread on top as what I have on the table so not long enough for protector and plastic (or the plate) The other is just long enough but I will have to drill a T-Nut on the underside of the playfield though there seems lack of space to fit a T-Nut (too close to the edge of a hole)
I still have to fit the supercharger support also.
The zoomed in image of another Getaway shows a longer post thread or is that just a reflection on the pop bumper cap, real head scratcher this is
I still have to fit the supercharger support also.
The zoomed in image of another Getaway shows a longer post thread or is that just a reflection on the pop bumper cap, real head scratcher this is
Last edited:
I’m not quite sure how the protector will cope if it’s not fastened tight.
Yes you will have the edge pop that looks really nice but I think that’s a high traffic area so be interesting how it holds out.
I can always send another FOC just cover postage.
My old HS2 is still holding up no problems at least 4yrs on with the very same protector.
Yes you will have the edge pop that looks really nice but I think that’s a high traffic area so be interesting how it holds out.
I can always send another FOC just cover postage.
My old HS2 is still holding up no problems at least 4yrs on with the very same protector.
Thanks @Colywobbles for the offer you don`t need to do that, your plastics are great, really appreciate your help, I have done it, raising the post did the trick its not going anywhere the plastic fits over the post snug no movement the other post is left alone. In all my messing I did break my plastic so I went back to the metal plate may have a look again at that another day. I have the mountain mod so I am now looking at this but with that you remove most of the plastic anyway.
So Far so good
the plastic fits over the post snug no movement the other post is left alone. In all my messing I did break my plastic so I went back to the metal plate may have a look again at that another day. I have the mountain mod so I am now looking at this but with that you remove most of the plastic anyway.So Far so good
Last edited:
Amazing
