Just in case this is any help to folks in the future....
The target motor (that is also the same as the table motor) started to play up in my Chicago gaming MBrm. Having looked on line I could not find any replacements from the usual pinball suppliers. So I did some research, found and fitted a replacement motor that does the job a little better than the original.
Here is the old motor....
This is the new one......
Fixings are exactly the same. It is important to get the polarity correct on these motors. I also extended the cable a bit as I felt that the wires were a bit short and could possibly break prematurely.
OLD on the left - NEW on the right. The original motor was dismantled to try and 'clean' it as that was the fault and not the gearbox, that is why the base of it looks a little hacked.....
Some pics of the motor fitted.
LINK TO THE MOTOR - under £15 delivered.
Has been fitted and working quite nicely for the last week.
On trying to trace details on the original motor it does state that the original is 50 RPM but I can not honestly tell the difference. Weird thing is they do a 6v motor and the motor in the game runs at 6v, but uses a 12v spec motor.
So there you go!
The target motor (that is also the same as the table motor) started to play up in my Chicago gaming MBrm. Having looked on line I could not find any replacements from the usual pinball suppliers. So I did some research, found and fitted a replacement motor that does the job a little better than the original.
Here is the old motor....
This is the new one......
Fixings are exactly the same. It is important to get the polarity correct on these motors. I also extended the cable a bit as I felt that the wires were a bit short and could possibly break prematurely.
OLD on the left - NEW on the right. The original motor was dismantled to try and 'clean' it as that was the fault and not the gearbox, that is why the base of it looks a little hacked.....
Some pics of the motor fitted.

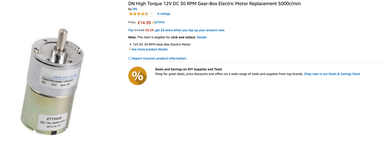

LINK TO THE MOTOR - under £15 delivered.
