DIY HIPs Mirror Blades

Solar Sailer

Site Supporter
Jun 22, 2018
609
503
93
Basingstoke

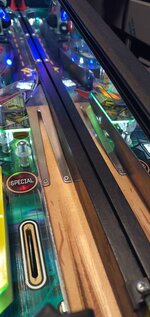

Thought I would try making my own Mirror Blades for CSI as an experiment.
Some lessons to be learned but generally a easy material to work with and a set works out at about £13.

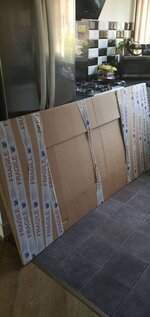

I bought a sheet of HIP for £38 delivered 1m x 2m as it was a pre cut sheet.

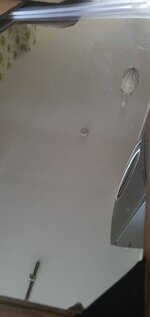

It arrived well packaged but about 50 cm was scratched in transit due to the film coming off. Pic 2.

With a sharp knife and scissors completed a template and made sight alterations as I went.
I used a sheet of pinball glass to get a straight line by kneeling on the glass as i cut across.
I cut holes for the hinge nut and made in hind sight i could have left covered. I would only need access if I was taking the hinges off to replace or powder coat.

I used double sided sellotape on the back and it has stuck well to the cab.

Would I use again. Yes definitely and have enough to do the sides of Haunted House if there is enough clearance and another machine.
There is quite a piece of offcut partially scratched but I could make a trim for under the DMD panel, if I feel inclined.


Attachments

Last edited:

cathaldub

Registered
Feb 22, 2015
70
8
8
Dublin, Ireland
Nice, what thickness did you use?
I’m looking up making a set, 2mm is the only hips I seem to be able to locate delivered to Dublin, I’m just wondering how easy it’d be to cut


Sent from my iPhone using Tapatalk

OP
Solar Sailer

Solar Sailer

Site Supporter
Jun 22, 2018
609
503
93
Basingstoke
Nice, what thickness did you use?
I’m looking up making a set, 2mm is the only hips I seem to be able to locate delivered to Dublin, I’m just wondering how easy it’d be to cut


Sent from my iPhone using Tapatalk
I used 1mm. Check ebay.
Just a new blade in my Stanley knife. Its good for about 6-8 cuts.
Its a really usable material and looks stunning.

  • Like
Reactions: cathaldub

crsedgar

Site Supporter
Jun 12, 2016
75
30
18
DUNDEE
I would stick with 1mm or less, it will be a lot harder to cut and will increase the chance of scratching. I used BayPlastics and concur its a nice product.

  • Like
Reactions: Solar Sailer

Matrixnetuk

Site Supporter
Jun 28, 2019
66
61
18
Nottingham
Yep I probably need the 1mm vesrion as my TZ is bloomin tight on the sides in fact the previous owners looked like they have tried to lift the table with a crowbar and gauged the insides terribly deffo need the blades to hide this mess ;-)


Colywobbles

Site Supporter
Nov 9, 2016
829
1,186
93
Sunderland
www.colspinballmods.com
Alias
Colin Chapman
Oh WOW my local Acylic stockist is Bay Plastics so I can collect in person! I’m there regularly so I’ll grab me some sample stuff and see if I can laser it while I’m on.

awesome thanks.

just as a matter of interest what is the longest measurement on the blades

  • Like
Reactions: Hullshark
OP
Solar Sailer

Solar Sailer

Site Supporter
Jun 22, 2018
609
503
93
Basingstoke
Oh WOW my local Acylic stockist is Bay Plastics so I can collect in person! I’m there regularly so I’ll grab me some sample stuff and see if I can laser it while I’m on.

awesome thanks.
Great. They knew what I was using it for. Laser cut would be ideal Colin. Might be an addition to your excellent pinball service 😉

OP
Solar Sailer

Solar Sailer

Site Supporter
Jun 22, 2018
609
503
93
Basingstoke
Oh WOW my local Acylic stockist is Bay Plastics so I can collect in person! I’m there regularly so I’ll grab me some sample stuff and see if I can laser it while I’m on.

awesome thanks.

just as a matter of interest what is the longest measurement on the blades
Stern runs in at around 153cm i think +/- flipper button to back panel.
