Bally / Stern SS's get into the 21st Century - Introducing "ColourClassic" Score Displays

AlanJ

Site Supporter
Joined
Dec 27, 2017
Messages
6,303
Location
Leeds, West Yorkshire
Alias
Alan
Been working away on this project for the past few weeks.

I had a silly idea a while back about bringing full colour score displays to Bally (and Stern) Classic Solid State Games.

I wanted them to be plug and play - i.e. Simply remove your old score displays and slot in these new ones.

A nice range of font and colour options.

Ability to add your own "fonts".

Splash screen - again user selectable / can create your own.

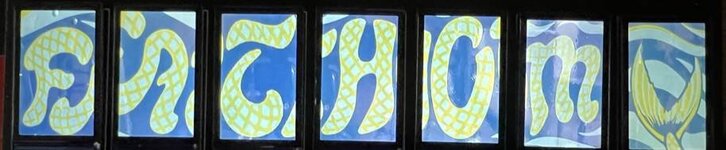

Here is a Fathom Splash screen - very raw example, just from a photo off the cab side art:

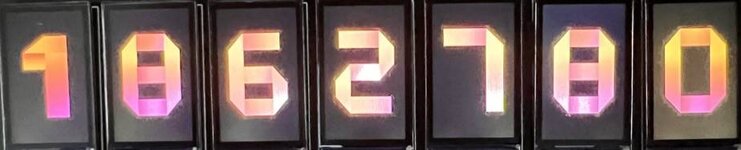

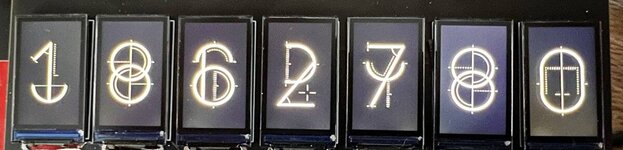

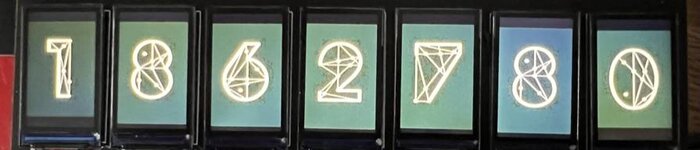

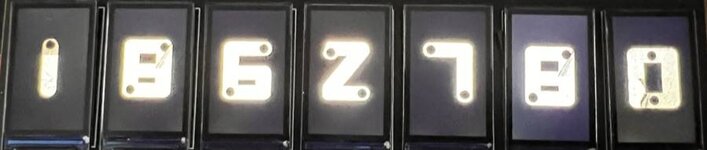

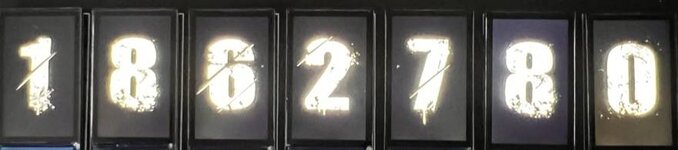

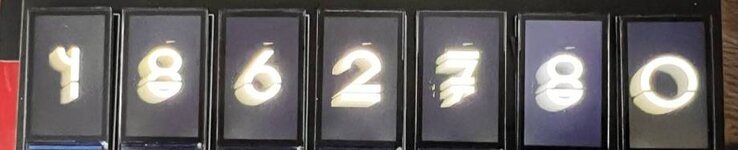

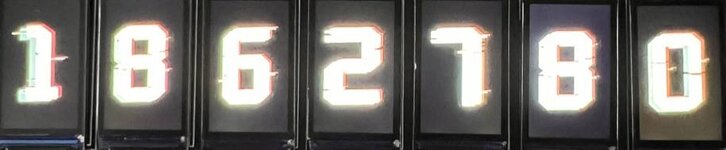

here are sample fonts:

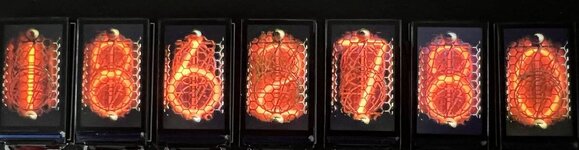

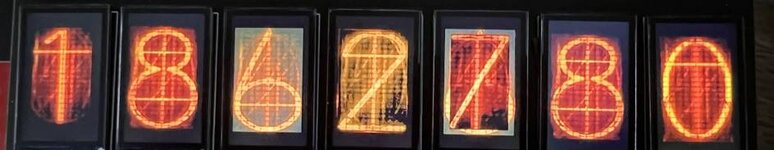

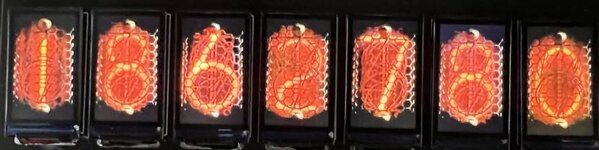

Nixie Tube:

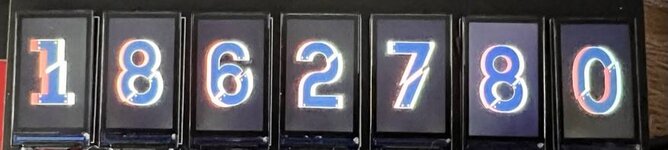

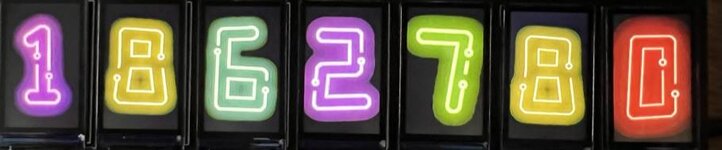

Neon Colour:

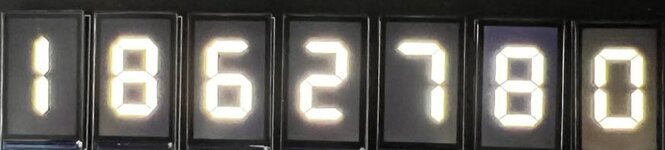

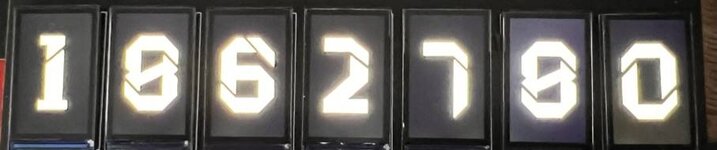

7 seg white

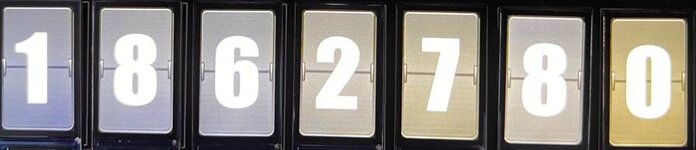

flip digit

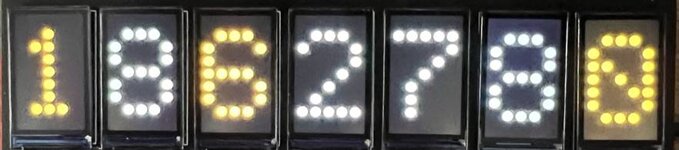

yellow / blue dots

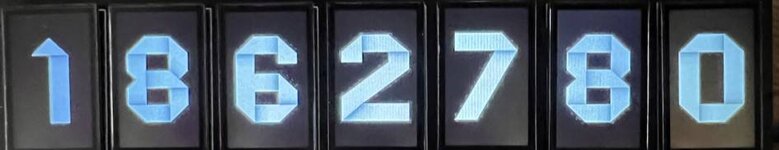

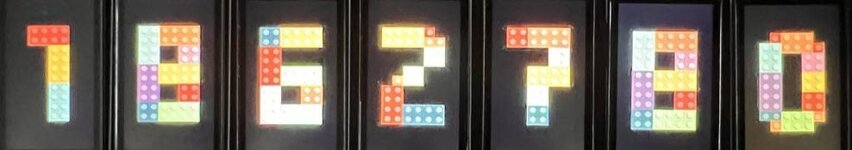

LEGO







Nixie 2

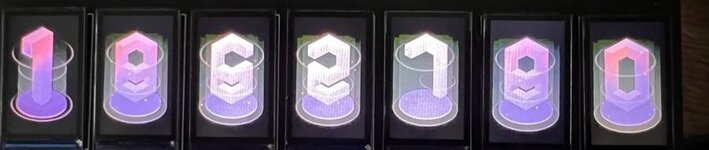

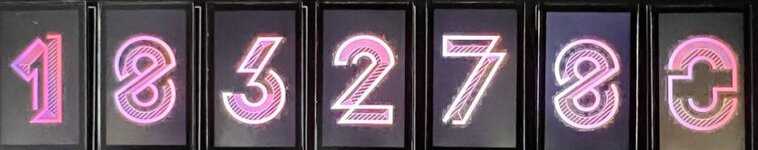

3D


Here is a youtube video of the display in demo mode:

Early days yet,


astyy

Play Flipper Games for Fun and Recreation
Joined
Jan 19, 2015
Messages
3,079
Location
Basingstoke
Alias
Dont be nosey :-)
Great idea, will they be able to support the elusive comma's somehow?

OP
OP
AlanJ

AlanJ

Site Supporter
Joined
Dec 27, 2017
Messages
6,303
Location
Leeds, West Yorkshire
Alias
Alan
Great idea, will they be able to support the elusive comma's somehow?
Hi, Yes - two ways to do this, first way is a hardware solution, using a led between the displays and masking it out with a comma shape - rgb led so the colour can match the "font" being used. Downside is it probably will look crap with certain "fonts"
Second Way is to add the comma to the images - would need then 2 images for each number ie "1" and "1," , "2" and "2," etc. I like this approach, but quite a few of the "fonts" ive got already dont really lend themselves to having a comma - but haing said that, can probably get them re-done, or create new versions.


VeeMonroe

Site Supporter
Joined
Aug 4, 2021
Messages
1,244
Location
London
if you have an example ?
These are vintage sci-fi:


And these are modern sci-fi:


I was looking for something retro for a Flash Gordon, but I can see someone with a futuristic SS pin wanting something like the latter ones. Don’t know how they look with numbers tho’.


Neil McRae

Site Supporter
Joined
Jun 5, 2016
Messages
15,932
Location
Surrey
Alias
Neil McRae
as a lover of colordmd, if you described them to me I'd be excited but seeing them, not convinced.


Wizcat

Registered
Joined
Sep 9, 2011
Messages
1,645
Location
Lancashire
Alias
Paul G
Hi, Yes - two ways to do this, first way is a hardware solution, using a led between the displays and masking it out with a comma shape - rgb led so the colour can match the "font" being used. Downside is it probably will look crap with certain "fonts"
Second Way is to add the comma to the images - would need then 2 images for each number ie "1" and "1," , "2" and "2," etc. I like this approach, but quite a few of the "fonts" ive got already dont really lend themselves to having a comma - but haing said that, can probably get them re-done, or create new versions.

Just a heads up on this, that Europeans prefer to use . as a separator (eg, where we would write 123,456.78 Europeans prefer 123.456,78)

If possible it would be best practice to try and put a small whitespace between digit groups, though that might be difficult with the displays you're using I suppose. Might be easiest to just not worry about grouping

OP
OP
AlanJ

AlanJ

Site Supporter
Joined
Dec 27, 2017
Messages
6,303
Location
Leeds, West Yorkshire
Alias
Alan
Just a heads up on this, that Europeans prefer to use . as a separator (eg, where we would write 123,456.78 Europeans prefer 123.456,78)

If possible it would be best practice to try and put a small whitespace between digit groups, though that might be difficult with the displays you're using I suppose. Might be easiest to just not worry about grouping
I could if I cold get a single display - however I haven't yet found a single display that is the correct dimensions, hence the decision to use a separate display per digit. It's a real shame I can't use old mobile phone displays as many of those are the right dimension - but the issue is they are all undocumented and almost impossible to interface to (i'm still looking at this as an option).


Fubar

Site Supporter
Joined
Feb 5, 2020
Messages
1,178
Location
Cambridge, UK
Alias
Thomas
In Switzerland we always write numbers as 123'456.78 -- I think "Europeans" is far from a uniform concept!


stumblor

Site Supporter
Joined
Sep 16, 2018
Messages
3,229
Location
London UK
Alias
Davey Price
They look awesome mate! Really clever 90 degree board join there too (I love that stuff) 👏 Be great to get that SD module lying flat.

Let me know if you need any help with the web config side of things for that ESP32

OP
OP
AlanJ

AlanJ

Site Supporter
Joined
Dec 27, 2017
Messages
6,303
Location
Leeds, West Yorkshire
Alias
Alan
They look awesome mate! Really clever 90 degree board join there too (I love that stuff) 👏 Be great to get that SD module lying flat.

Let me know if you need any help with the web config side of things for that ESP32
Cheers. Yes, the SD card board - I wanted it flat, but then it's either facing the wrong way or upside down because of the way the pins are pre-soldered, , so went vertical. :)

ESp32s: Ive been using IOTWebconf library to get web connection and to serve up simple web pages. I should really look for a newer better library, especially for the web server / web pages side of things.

Lots more to do in this project:
1. Get it reading and displaying the scores from the game
2. Add in web stuff , so a user can connect to the device and configure what type of display they want
3. get the 5 displays all talking to each other, so whenever you config the main display, the other 4 are synchronised with the same settings.

plenty to keep me out of trouble for a while.


stumblor

Site Supporter
Joined
Sep 16, 2018
Messages
3,229
Location
London UK
Alias
Davey Price
Check out ESPAsyncWebServer, it seems to be the defacto standard. Lots a features around chunking large responses, gzipping etc.

I run a tiny nodejs server so I can debug the web app locally, but then compile everything down into a big PROGMEM array when it get served from the board (checkout the WLED project for an example of how to do this). Doing it this way means you can separate everything like a true web app, and also have some fairly chunky libraries to help out client side also (like jquery, bootstrap etc).


astyy

Play Flipper Games for Fun and Recreation
Joined
Jan 19, 2015
Messages
3,079
Location
Basingstoke
Alias
Dont be nosey :-)
Loving this project. I particularly like the idea of supporting the original font (with comma!) as plug'n'play replacements that can be switched to different colours (without having to buy a fixed colour).

With regards the graphics, I was wondering if they could support basic "DMD" animations, for example a Gold Ball rolling across each display in turn.

Saying that, I pretty much have a life time supply of plasma spares, so don't base your business plan on my custom :rofl:

OP
OP
AlanJ

AlanJ

Site Supporter
Joined
Dec 27, 2017
Messages
6,303
Location
Leeds, West Yorkshire
Alias
Alan
Check out ESPAsyncWebServer, it seems to be the defacto standard. Lots a features around chunking large responses, gzipping etc.

I run a tiny nodejs server so I can debug the web app locally, but then compile everything down into a big PROGMEM array when it get served from the board (checkout the WLED project for an example of how to do this). Doing it this way means you can separate everything like a true web app, and also have some fairly chunky libraries to help out client side also (like jquery, bootstrap etc).
cheers will do. i had a look at wled a while ago but it wouldn’t compile up under arduino ide, which is what i use. not ready yet to jump to platformio!

OP
OP
AlanJ

AlanJ

Site Supporter
Joined
Dec 27, 2017
Messages
6,303
Location
Leeds, West Yorkshire
Alias
Alan
Loving this project. I particularly like the idea of supporting the original font (with comma!) as plug'n'play replacements that can be switched to different colours (without having to buy a fixed colour).

With regards the graphics, I was wondering if they could support basic "DMD" animations, for example a Gold Ball rolling across each display in turn.

Saying that, I pretty much have a life time supply of plasma spares, so don't base your business plan on my custom :rofl:
yes great idea. i can do a variety of animations and it’s pretty fast.

i’d really like to have one large display, but the only hardware currently available that is the correct size is almost impossible to drive via an esp32s processor. you can drive them via a raspberry pi but that is too expensive to use one of those per display.

i’m hoping new hardware availability will allow me to go single big screen in future

i


Fubar

Site Supporter
Joined
Feb 5, 2020
Messages
1,178
Location
Cambridge, UK
Alias
Thomas
cheers will do. i had a look at wled a while ago but it wouldn’t compile up under arduino ide, which is what i use. not ready yet to jump to platformio!
You can compile & upload WLED from the cmdline using pio run -t upload then use any editor of your choice (except emacs of course :p)
