For Sale Bally LED Score Displays - Various Colours - FINAL RUN

AlanJ

Site Supporter
Joined
Dec 27, 2017
Messages
6,288
Location
Leeds, West Yorkshire
Alias
Alan
Morning folks!

After making 100's of these, I've decided to cease production, because there are other projects I want to spend my time on, and these just take too long to build & test, plus recent components price increases are making them hardly viable.

I've got a final run of 50 units, enough for 10 sets of 5 units. 6 Digit or 7 Digit, Red, Amber, Green, White, or Blue. (Or a mixture if you want - eg for credit / match / Ball in play - can look nice mixing colours).

£35 a unit + £4 postage (any qty), or £160 for a full set of 5 posted in UK.

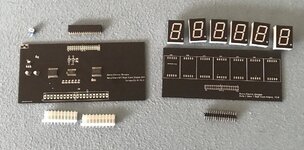

A cheaper option is to solder them up yourself (The control board is already built with all the SMD components placed and soldered) - all that needs soldering are the potentiometer, 4 headers and the the 7 digit led displays. £25 each + £4 postage or £100 for a full set of 5 posted UK.

Pics below:


Attachments

  • IMG_8164.JPG
    68.2 KB · Views: 28
  • IMG_8263.JPG
    98.9 KB · Views: 24
  • IMG_8265.JPG
    84.9 KB · Views: 23
  • IMG_8266.JPG
    115.4 KB · Views: 23
  • IMG_8332.JPG
    65.4 KB · Views: 22
  • IMG_8335.JPG
    41.1 KB · Views: 20
  • IMG_8337.JPG
    49.6 KB · Views: 22
  • IMG_1099.jpeg
    122.1 KB · Views: 23
  • IMG_1100.jpeg
    168.5 KB · Views: 27
  • IMG_1101.jpeg
    164 KB · Views: 23
  • IMG_8517.JPG
    73.1 KB · Views: 23
  • IMG_8521.JPG
    73.8 KB · Views: 24
  • IMG_8524.JPG
    106.5 KB · Views: 32

Fubar

Site Supporter
Joined
Feb 5, 2020
Messages
1,171
Location
Cambridge, UK
Alias
Thomas
If you're not making any more, would you consider publishing the design for others to self-produce in the future?


pinballmania

Site Supporter
Joined
Jul 21, 2011
Messages
2,314
I'll take three sets of self build if still available.

2 x seven digit set
1 x six digit set

All amber

OP
OP
AlanJ

AlanJ

Site Supporter
Joined
Dec 27, 2017
Messages
6,288
Location
Leeds, West Yorkshire
Alias
Alan
All sold thanks,

but whilst rummaging in boxes this afternoon i’ve found more displays and some display boards. I can possibly make up some more sets, but need to order some more controller boards and header parts. i’ll check prices to see if it’s worth doing a small production run……………..

OP
OP
AlanJ

AlanJ

Site Supporter
Joined
Dec 27, 2017
Messages
6,288
Location
Leeds, West Yorkshire
Alias
Alan
You can never beat the real plasma glow :)
The positive consequence of people upgrading to LED is a nice supply of the old displays for those who prefer them.

Personally I like to colour match to the game.

I really don’t like the 190v DC in the backbox though, it’s bloody dangerous. Whenever I upgrade to LEDs, I remove the HV fuses from both the sdb (if it has one) and the rectifier board. (This prevents the 230v DC going into the sdb).

There is a version of the weebly sdb board that is quite a bit cheaper because it omits the hv section completely.


russdx1

Site Supporter
Joined
Jul 7, 2018
Messages
2,484
Location
Bristol
Alias
russdx
The positive consequence of people upgrading to LED is a nice supply of the old displays for those who prefer them.

Personally I like to colour match to the game.

I really don’t like the 190v DC in the backbox though, it’s bloody dangerous. Whenever I upgrade to LEDs, I remove the HV fuses from both the sdb (if it has one) and the rectifier board. (This prevents the 230v DC going into the sdb).

There is a version of the weebly sdb board that is quite a bit cheaper because it omits the hv section completely.
I completely understand why people do it :) for me nothing beats the real glow of a plasma display :)
