Replacing connections (White Water)

[Pop Bumper Pete]

As you can see, I have to replace a few connecting plugs on my White Water

Do you suggest using connectors like the original where you push the wire into the contact (as original)
Or, replace them with crimped molex plugs

Thanks
Pete



[Asiapinball]

I use crimps especially for anything with higher power such as gi circuits using incandescent bulbs. But idc fine otherwise.



[Asiapinball]

Use trifurcon crimps for the higher powered circuits.

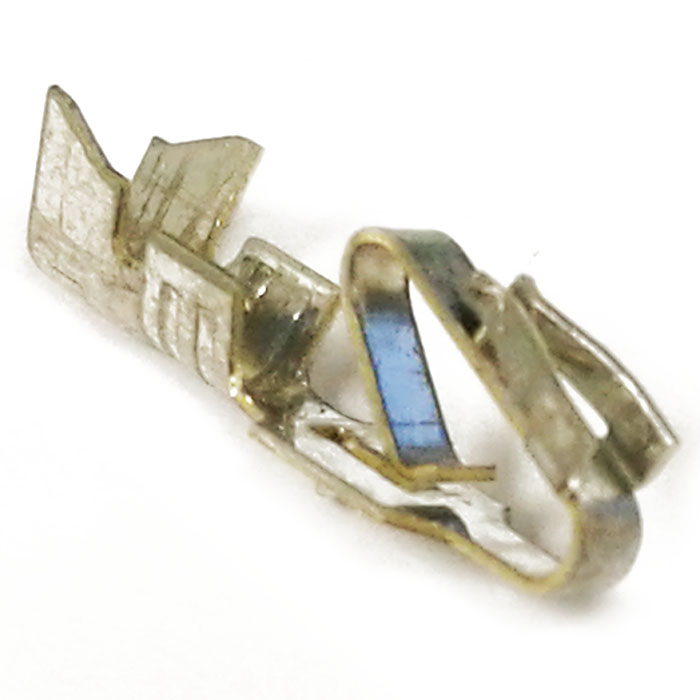

.156" Trifurcon Crimp Terminals

MOLEX03 .156" Trifurcon Crimp Terminals: Three-sided crimp terminals for 18-20AWG stranded wire. Compatible with Molex .156 housing.

www.pinballlife.com



[Asiapinball]

Definitely trifurcon crimps for the gi circuits for your whitewater and all board connectors need replaced too.



[Asiapinball]

Here's some I did on the gi on a system 11 interface board. Before and after. Trifurcons used as running incandescent gi.
