williams rottendog mpu replacement chip for 74HCT9114?

stevebm1

Registered
May 26, 2014
999
277
63
uk
hi does anyone know of an equivalent part for the 74HCT9114 9 bit invertor,mine has gone bad and I can't seem to source a replacement

thanks in advance

OP
stevebm1

stevebm1

Registered
May 26, 2014
999
277
63
uk

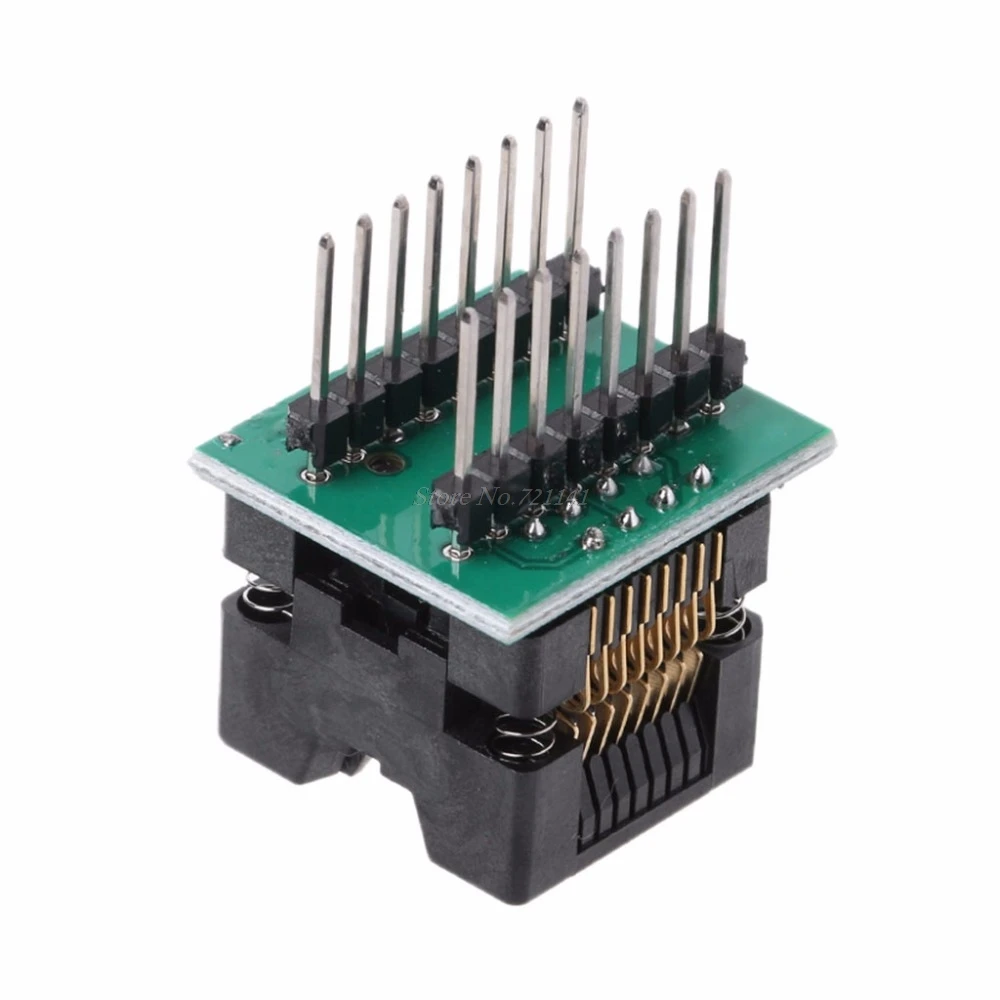

just to update,I found a solution to being unable to find a dip package 74HCT9114,I managed to source the surface mount version,and ended up using an adapter like this:


yes it's not pretty but it works!,and the chip can be easily removed if it fails again at some point rather than soldering it to a surface mount converter


stumblor

Site Supporter
Sep 16, 2018
1,732
1,912
113
London · Davey Price
Alias
Davey Price
OP
stevebm1

stevebm1

Registered
May 26, 2014
999
277
63
uk
similar it's a soic/sop 28 adapter,plus I had to get one with the narrow header pins,as a lot of them have the wide pin width which was no good for my needs
