Wheel of Fortune up post

Orgyofclowns

Registered
Joined
Jan 26, 2021
Messages
14
Location
Lydney
Hi everyone

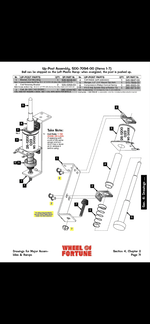

My Table has formed an issue on the left ramp up-post there the ball is getting stuck then popping past the post on a ball recovery mode. The post seems a bit too high. Is there anyway to adjust these to lower it a bit and if so how do you know the correct position? I've included the part diagram. Guessing it's between 1 and 7

Would much appreciate any help

Cheers
Rhys


It looks like Part 7 is an adjustable screw to determine the height of the drop target when it is down. If the target is sitting too high you'll need to take a few turns out of it until the height is correct.

Yeah that fixed it easy enough. Did it halfway and works perfect now. The KEP nut has gone so need to replace that. Have used a bit of sticky paper for now
