This is my tip how to repair missing traces

Balazs

Site Supporter
Joined
Oct 19, 2019
Messages
374
Location
London
Alias
Baz

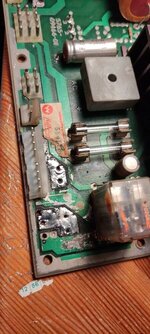

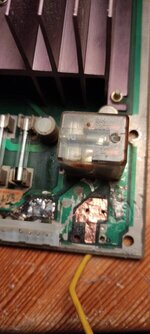

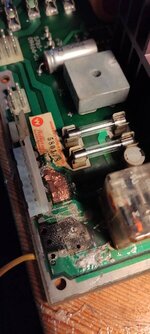

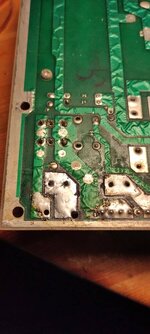

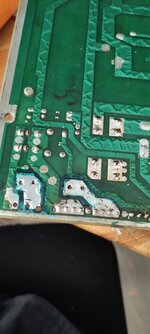

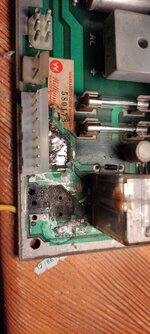

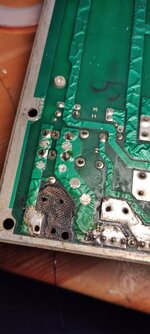

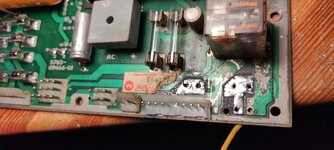

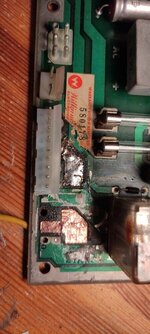

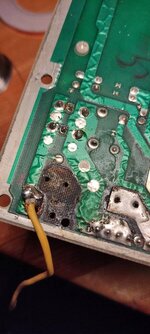

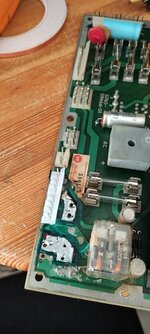

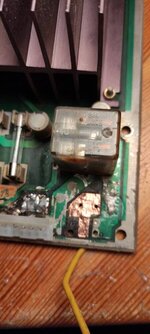

I thought I would share how to repair missing traces on the circuit board.

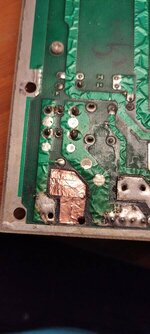

Im using self adhesive coper tape and put solder to the top.
At the end I put green epoxy to fix the new trace (it is not done yet on the pictures)


Attachments

  • IMG_20220311_172831.jpg
    64.3 KB · Views: 101
  • IMG_20220311_181214.jpg
    84.3 KB · Views: 100
  • IMG_20220311_181202.jpg
    67.9 KB · Views: 90
  • IMG_20220311_180731.jpg
    76 KB · Views: 89
  • IMG_20220311_175340.jpg
    70.9 KB · Views: 88
  • IMG_20220311_175042.jpg
    76.2 KB · Views: 87
  • IMG_20220311_174738.jpg
    94.7 KB · Views: 86
  • IMG_20220311_174200.jpg
    71.3 KB · Views: 87
  • IMG_20220311_174140.jpg
    57.1 KB · Views: 83
  • IMG_20220311_174139.jpg
    57.9 KB · Views: 80
  • IMG_20220311_174106.jpg
    76.9 KB · Views: 80
  • IMG_20220311_173506.jpg
    78.8 KB · Views: 103
Looks good. Guess you tested the continuity 1st - carbon being conductive and all.. nice idea though.. have done similar with edge connector on an Asteroids..

That looks nice. Do you also have a solution for via’s in the print?
Could you explain what is the meaning of the via's in the print sorry but I dont know what do you mean.

On a pcb you have tracks on both sides most of the time. These tracks are connected through the print with a via. This is a small copper pipe with solder in it.


Attachments

  • 16486318227078278536535644890891.jpg
    63.2 KB · Views: 9
£1.75 | RELIFE RL-007GA Dot Repairing For Iphone Solder Soldering Lug Welding Pad MotherBoard Jumper Wire Spot Repair Soldering Piece


This stuff is also looks good but I have not tried yet
Ooh thanks. That is great.
You are welcome

Ok I understand now
You can buy a brass rivet to the trough holes.
£1.35 24%OFF | 500pcs /lot M0.9(d)*2.5mm / 3mm (L) Brass / Not Copper Hollow Rivet Double-sided circuit board PCB 0.9mm vias nails rivet

These work great for through holes. For vias, you would probably need to drill them out first to create a bigger hole.
