TAF switches not registering

[jonathan]

None of the ramp switches or the Thing saucer switch are registering on my TAF all of a sudden.

Are they daisy chained? Will there be a break in the chain somewhere?

Thanks



[CHRIS B PINBALLS]

Yes and yes check the right top loop switch



[jonathan]

Yes and yes check the right top loop switch

Ok thanks

What's the easiest way of figuring out the switch map so I can manually check the switches and find which 2 the break is in between?



[CHRIS B PINBALLS]

Look in the manual if you have one



[jonathan]

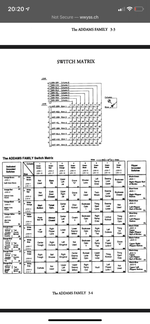

So are they numbered in the chain order as per the bottom table?

Or are they chained according to the top table?



[CHRIS B PINBALLS]

Do any of those switches work on that column



[jonathan]

Do any of those switches work on that column

Are we talking about the top half or bottom half
of the page sorry?



[CHRIS B PINBALLS]

Column 6 green and blue wire check all the switch’s on that column



[Pick Holder]

They are not numbered in order that they are connected.
Do what Chris suggested - you will probably find a wire off!

Also check the column 6 green wire back to the CPU board with a test meter. I have had then snag in the cabinet (on the base speaker) and break cables.

If not check with a diode on the CPU board....

Also make sure the CPU board has not got/had battery leak.
