T2 center post?

[FinalFight]

I'm looking to fit a center post back into T2 (it had a blank fitted)
I can't find it marked down In the manual.
Does anyone know the correct one?
I'm guessing it's something like this



[Jay Walker]

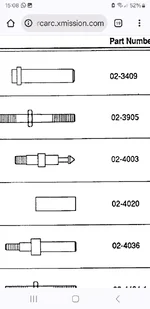

The T2 manual on ipdb has pages 2-29 and 2-30 listing Metal and Plastic Posts; there's a quantity of 1 showing for 02-4003, described as an 8-32 thread.



[FinalFight]

The T2 manual on ipdb has pages 2-29 and 2-30 listing Metal and Plastic Posts; there's a quantity of 1 showing for 02-4003, described as an 8-32 thread.

That's the one I seen but the thread looks too short ?



[FinalFight]

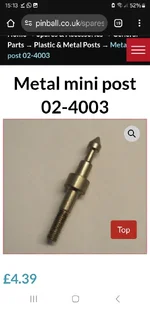

Just searched that number and it looks a longer thread than the image in manual



[Jay Walker]

Looking again, it's also listed for Earthshaker, pointed out between the flippers in the playfield drawing.



[FinalFight]

I think the manual picture just completely threw me on that



[Jay Walker]

I see that now, compared with the actual part.



[FinalFight]

Thanks Jay because I wouldn't of even searched it I just ruled it out completely
