Replacing board connectors

cr5000462

Site Supporter
Apr 25, 2020
227
52
28
Wrexham
Ive seen it done a few ways, but is there a "prefered" option? im talking about the female connectors that go onto the board pins,

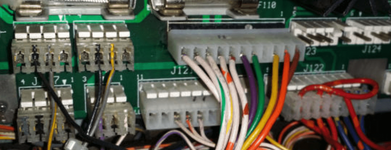

as you can see from the photos below, the old and new are different, Which way would you recommend?

Screenshot 2020-05-24 at 12.30.18.png


M4carp

Site Supporter
Jan 12, 2019
1,771
1,450
113
Pembrokeshire
Alias
David
I always do it the old way and punch the wires in the new connectors. Same as original. Never had a problem.


Durzel

Site Supporter
Oct 1, 2017
1,944
771
113
Bath, UK
If you’re repinning a whole connector - do it properly and go Molex.

If you’re just redoing a wire or two - use whatever is already there.

IDC was done for cost and speed reasons, not reliability. Molex is better in every way except cost and speed (on an industrial scale at least)

  • Like
Reactions: PBrookfield
OP
C

cr5000462

Site Supporter
Apr 25, 2020
227
52
28
Wrexham
Thanks,
What's the correct size idc tool? Also the technical name/size for the connectors that fit on our machines?

It's shopping time :confused:


Pick Holder

Beta Tester
Jul 18, 2016
1,813
1,140
113
50
Bournville, Birmingham.



Oh - and a good solder sucker! Clean board with IPA to get all the crud off.

OP
C

cr5000462

Site Supporter
Apr 25, 2020
227
52
28
Wrexham
Is 0.156 a standard size for pinball machines? So in theory a whole machine could be redone with different size (in terms of number of pins) connectors


astyy

Play Flipper Games for Fun and Recreation
Jan 19, 2015
2,667
1,800
113
Basingstoke
Alias
Dont be nosey :-)
Is 0.156 a standard size for pinball machines? So in theory a whole machine could be redone with different size (in terms of number of pins) connectors
You tend to find both "large" 0.156" and "small" 0.1" (10/inch), if you go the crimp route (my preference) this tool does both (and also in-line wire to wire plugs);




  • Like
Reactions: Pick Holder

Pick Holder

Beta Tester
Jul 18, 2016
1,813
1,140
113
50
Bournville, Birmingham.
It is very rare you have to use the smaller ones in my experience. On most machines I have to get out the 0.156 tool....

Those crimpers of Andy's seem to be out of stock as well. I do need to get some as the 0.1 pitch for some other non pinball projects so will use crimps in keeping with the original wiring.

Ebay to the rescue.


OP
C

cr5000462

Site Supporter
Apr 25, 2020
227
52
28
Wrexham
Thank you,
I think I will go for the original method

So it's just buy the 0.156 tool.
Buy connectors to suit. Either 0.156 or the smaller 0.1 pitch connectors.
Punch the wires into the new connector,
Bobs your uncle it's done.

And to clarify on the new route, it's crimp the connector using the crimping tool, insert into the plastic housing, plug in and away we go.

I'm trying to keep this simple until I get the hang of it


astyy

Play Flipper Games for Fun and Recreation
Jan 19, 2015
2,667
1,800
113
Basingstoke
Alias
Dont be nosey :-)
That would be for the new way?
Ideally, you use a polarising pin for both approaches (and sizes) it's what aligns the connector housing with the missing pin on the header to avoid plugging into the wrong place. :thumbs:


Pick Holder

Beta Tester
Jul 18, 2016
1,813
1,140
113
50
Bournville, Birmingham.
You can always take the one polarising pin out of the old connector if you use the same type.

Personally I prefer to swap like for like. IDC on pinballs and molex crimps on arcade/jukeboxes.


DRD

Site Supporter
Oct 26, 2014
4,185
2,992
113
Newark
Either way works fine, it is all about having the right tools and consumables.

I prefer Molex, but do recognise that the inferior idc connectors have worked quite happily for decades


DRD

Site Supporter
Oct 26, 2014
4,185
2,992
113
Newark
I find molex a bit more robust. IDC easier and quicker to replace but you MUST have a very good tool to do it properly

I only have a cheap plasticky IDC tool

  • Like
Reactions: cr5000462
OP
C

cr5000462

Site Supporter
Apr 25, 2020
227
52
28
Wrexham
Am I being a girl here or are the idc connectors super hard to push in, really hurt my hands doing them, often slipping and nearly stabbing myself :rofl:

Might change to crimped


Andydn

Site Supporter
Oct 14, 2019
347
351
63
Kent
Am I being a girl here or are the idc connectors super hard to push in, really hurt my hands doing them, often slipping and nearly stabbing myself :rofl:

Might change to crimped
I’m having the same issue, it’s 18 gauge wire and just seems to thick, already written off my plastic idc tool.
