Pacman Multiball conversion?

myPinballs

Well-Known Member
Nov 19, 2011
2,875
2,151
113
43
Pudsey UK
www.mypinballs.com
As part of a new board i'm developing for bally and stern games from the 80s, i'm wondering if i can convert my pacman trough to be a multiball trough instead of single ball. Would open up some interesting ideas in code and rules.

So this thread/question is one for those 80s ball fans and other collectors with good knowledge of this era of games. (@Sven Normansson , @Dave2084 @astyy @Nedreud )

My new board in develpoment (replacing the one i developed for the same games a few years back)


The pacman trough. Now notice those slots in the metal near the trough exit. Why do you think they put/left those in? Could they be used to add extra switches and release mech??


Maybe like this gottlieb approach?


Fireball classic has a good trough design to, so i wonder if those parts could be retro fitted also. I really don't like the multiball switch design on games like fathom, elektra, fireball2 etc

  • Like
Reactions: Big Phil

Jay Walker

Well-Known Member
Apr 19, 2013
1,141
398
83
Swansea, U.K.

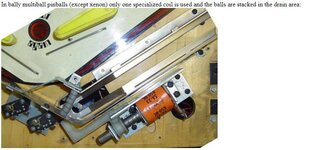

Is there a vacant solenoid drive to use for an additional 'lane feeder' mechanism? AIR this game already has a solenoid extender and an extra display latch. As above, most of the Bally m/ball games, and Stern's Flight 2000, simply leave the balls queuing at the outhole.

OP
OP
myPinballs

myPinballs

Well-Known Member
Nov 19, 2011
2,875
2,151
113
43
Pudsey UK
www.mypinballs.com
My HHouse multiball mod was with a gottlieb type gate set up, in my HH article on pinnews
Yeah, like i was showing on my original post with the big hurt trough image, i think the gottlieb ball release mech is the best option, as it means the least amount of playfield changes and all is still mounted under the apron.

Any idea what the part number is for the ball release mech and where you can find one or the parts? I really need one of those gottlieb parts manuals for 1986 ish. So annoying they dont include all the assembly drawings in the game manuals. Might be another 3d print design coming up at this rate.

OP
OP
myPinballs

myPinballs

Well-Known Member
Nov 19, 2011
2,875
2,151
113
43
Pudsey UK
www.mypinballs.com
Is there a vacant solenoid drive to use for an additional 'lane feeder' mechanism? AIR this game already has a solenoid extender and an extra display latch. As above, most of the Bally m/ball games, and Stern's Flight 2000, simply leave the balls queuing at the outhole.
I've got plenty of new drives available with my new controller as it unlocks some extra drives from original driver hardware, plus adds another 16 via new hardware options to

I'm avoiding any stacking in the outhole, terrible idea. Can't believe bally did this when they already designed fireball 1 / 4 mil bc troughs..


astyy

Play Flipper Games for Fun and Recreation
Jan 19, 2015
2,318
1,397
113
Basingstoke
Not true multi-ball play, but another interesting example is Gold Ball with it's separate troughs and twin solenoid outhole gate - a lot of complication once the pinballs look the same colour anyway!

  • Like
Reactions: new forest pinball
OP
OP
myPinballs

myPinballs

Well-Known Member
Nov 19, 2011
2,875
2,151
113
43
Pudsey UK
www.mypinballs.com
Looks good! whats the strength of 3d printed parts like? is it quite brittle, or does it have some give?
These are proto prints using pla. It’s pretty good and rigid when 2mm thick but with some give not brittle. For mechs like this where it’s just moving a gate essentially it’ll work great.

I could get it printed in any number of other materials to!


Paul

Staff member
Oct 5, 2012
7,867
3,138
113
Birmingham/Bristol
www.pinballinfo.com
Nice piece of kit!! I was going to pick one up a year or so ago, however i couldnt justify the massive price Vs quality with some of the others on the market. Plus the Wait time was absolutely ridiculous (3 months post payment). Nice to see it's now days :)

Am surprised that they haven't brought the price down, or at the very least update it more often.

However - Enjoy - they are the Rolls Royce of 3d printers :) - but you knew that! :)

  • Like
Reactions: James
OP
OP
myPinballs

myPinballs

Well-Known Member
Nov 19, 2011
2,875
2,151
113
43
Pudsey UK
www.mypinballs.com
Nice piece of kit!! I was going to pick one up a year or so ago, however i couldnt justify the massive price Vs quality with some of the others on the market. Plus the Wait time was absolutely ridiculous (3 months post payment). Nice to see it's now days :)

Am surprised that they haven't brought the price down, or at the very least update it more often.

However - Enjoy - they are the Rolls Royce of 3d printers :) - but you knew that! :)
22 months with no update? This model was released in Feb 2019. The mk3s. Shipped same day and I had in 5 working days from order date via dpd

OP
OP
myPinballs

myPinballs

Well-Known Member
Nov 19, 2011
2,875
2,151
113
43
Pudsey UK
www.mypinballs.com
My bad - i updated my post before you replied as i was wrong - apologies! :)
No worries. I am genuinely impressed with the quality of this kit including how it’s packaged and the instructions. A joy to assemble. Most of what I read before buying said this was best under a grand printer so not that expensive in context.

I’m replacing my ‘magazine weekly assembled one’ that I inherited off my dad who bought it as something to keep himself occupied. I thought it would be absolute bobbins but I actually got a lot of use out of it and has spurred me on further. I kind of got to the end of its ability now though and want something better

What did you decide to get instead? Hopefully more people here will get into 3d printing ness! I think it’s got many many pinball uses!!


Paul

Staff member
Oct 5, 2012
7,867
3,138
113
Birmingham/Bristol
www.pinballinfo.com
What did you decide to get instead? Hopefully more people here will get into 3d printing ness! I think it’s got many many pinball uses!!
I ended up with a Wanhao i3 plus mk2....

88221

If you havent used it Octoprint is a very worthwhile addition using a Pi - ability to monitor from any browser, add a webcam for live checks, and a host of other uses!
