Node board repair

[Dave Bishop]

So had my first Node Board go tonight, Node board 9’on GBLE.

Swapped it out with and working now. Board swapped out with


Need to replace the spare board now..Looking at all the different Node boards, there are a lot that appear to do the same thing, but are different prices and different numbers.

I have BM66, James Bond, Godzilla, Ghostbusters

Is there a board that covers all the games… and all positions in those games..

Appreciate the help



[mark9]

520-7017-72 is the original node board only to be used in position 8 or 9 (blue)

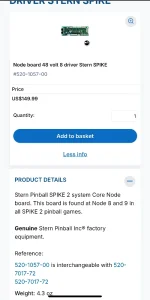

520-1057-00 is the newer version Stern use now on NIB (green)

https://sternpinball.com/wp-content/uploads/2022/09/Stern-NodeBoardUpdate.pdf

Try @Nevin he's repaired a couple of mine recently. Bear in mind sometimes they are not repairable.



[Alpha1]

I've got two that have failed, was quoted £140 ish to repair if indeed repairable. I opted to buy the updated revision ones instead for £189.

Still have the failed ones here in a box somewhere.
