Looking for Wh2o cable...

[Paul]

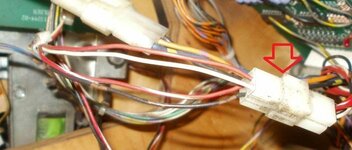

I seem to be missing the cable between the main loom and the Motor on Wh2o. Looks a little like this....



Whilst i'm not expecting anyone to have the exact cable assembly, does anyone have one with the right connector on the end that i can use to make my own (connector/wires). Not fussed on colour of the wires obviously

Cheers
Paul



[RudeDogg1]

Is it a 4 pin? And is it the smaller version or larger? I may have one just trying to find my box of connectors



[Paul]

it's a 4 pin square......

this is the other end (Pin end) that plugs into it....



Cheers
Paul



[replicas]

I will have one on one of the many looms I have hanging about.
How much cable do you want on either end ?



[RudeDogg1]

I have these



[Paul]

Thats the one Rudi (the one on the left) - However Darren's offer would be better only because it is terminated with the pins in.... If he has one there that is Just saves a load of hacking about with crimps etc I havent got....

Darren - anywhere between 6" and 12" would be perfect..



[RudeDogg1]

If he hasn't got one I can make u up one



[Paul]

Thank you Rudi



[RudeDogg1]

No probs



[replicas]

Will get back to you tomoz when I have had a check what I have.



[Spandangler]

Pinballinfo to the rescue. Teamwork, that's the key



[Paul]

it certainly is We all have a common aim



[replicas]

Here you go,
Ping us your daddy and I will get them sent off.



[replicas]

Forgot the picture.



[Paul]

PM sent - many thanks Daz



[replicas]

No worries buddy.



[Poibug]

Here you go,
Ping us your daddy and I will get them sent off.

whos the feckin daddy?? said in true gangsta voice!!



[Paul]

indeed!!



[RudeDogg1]

Sounds better said in cockney than northern tho lol



[replicas]

Bloody predictive text.



[Calimori]

That is a good deal, one parent for a missing connector.



[Paul]

Many thanks to @replicas - arrived today - will be installed later Cheers again matey



[replicas]

No worries buddy.
A job for the weekend.
Hoping to see this Wh2o working soon.



[Paul]

And me!!



[newdos]

Paul,

Hope you have took loads of pics of your WH20 restore as I will be starting my after my FT and will I need some help with this bad boy!!!

Cheers Kev



[Paul]

There were a few, not as many as i really needed since i picked it up pre-stripped, however there's also loads online - I'll fire you the links later



[replicas]

I still have a load from when I did mine.
If you need anything just give a shout.



[newdos]

Cheers Darren



[Paul]

@newdos
Here's the place ive been using the most....

http://www.weirpinball.com/gallery/index.php/Teardown-pics/Williams-Bally-DMDs/White-Water?page=1



[newdos]

Thanks Paul
