My most recent purchase failure was an incredibly overpriced (thanks to an ebay auction) Williams Jokerz! that has definately seen better days and after getting it all set up has also seen some electrical horrors. The more i look at the machine the more i find cut wires and connections bound with electrical tape. Its going to be a big project but perhaps when its complete i could trade it for a minty Addams Family! :rofl:



And now for the electrical house of horrors

My favourite, “oh no, the connectors broke - lets cut it off, wrap the wires together and stuff them in a rubber that i can take off of the playfield!”

OP
OP
MajesticPinball

MajesticPinball

Site Supporter
Jan 11, 2018
535
380
63
24
Essex
Firstly i checked the fuses, not too bad really as only 13 out of 19 were completely of the wrong value. Ive placed a big order of fuses of all values as ive never had a good backup supply so its about time i did. I have also ordered a few IDC connectors and plugs to try and make a start on the multitude of connector sins!

  • Like
Reactions: Poibug and Tony

James

Site Supporter
Dec 29, 2017
2,286
1,034
113
Norwich
@deathrow a pretty clean one (looked clean, but all know I am useless at pointing that out) came up on Gumtree in Lowestoft but they wanted £1200 for it I think...

OP
OP
MajesticPinball

MajesticPinball

Site Supporter
Jan 11, 2018
535
380
63
24
Essex
@deathrow a pretty clean one (looked clean, but all know I am useless at pointing that out) came up on Gumtree in Lowestoft but they wanted £1200 for it I think...
Its down to £1,100 now but looks like half of the GI is out. Still considerably better than mine and theyre not really asking for much more than what i paid :oops:

OP
OP
MajesticPinball

MajesticPinball

Site Supporter
Jan 11, 2018
535
380
63
24
Essex
Today I removed the interconnect board to replace a set of header pins, turns out the burnt connector lead to a completely burnt/destroyed trace on the reverse side of the board so i soldered in a jumper wire to bypass the destroyed trace.




  • Like
Reactions: James
OP
OP
MajesticPinball

MajesticPinball

Site Supporter
Jan 11, 2018
535
380
63
24
Essex
Was quite surprised to see her spring back to life so quickly but here she is lit up for the first time. I’ve repaired the GI relay boards for now but have a couple of new ones on their way so will just replace those to save problems in the future. My next issue is getting past a very intermittent factory settings restored message. There is no acid damage around the battery holder but from what i can see there is a partially broken tab which isnt making the best contact with one of the batteries so next i will remove the holder and wire in an external one.81281ACC-FFD8-4336-B8B3-A0F9D8D50A3B.jpeg


  • Like
Reactions: Tony
OP
OP
MajesticPinball

MajesticPinball

Site Supporter
Jan 11, 2018
535
380
63
24
Essex
As this is my first System 11 machine I’m not 100% sure but I’m lead to believe that the only way to change the language settings on a System 11B game is to change the game roms, if this is correct would anyone be willing to burn the english game roms for me as my french isnt too good and reading the test menu is a struggle :hmm:


Jay Walker

Well-Known Member
Apr 19, 2013
1,115
384
83
Swansea, U.K.
Re. the text language; the early System 11 games had a selection/adjustment for this, but it was English or German (boards with jumper W7 not connected booted up with German text), but the later ones didn't have enough memory space for a second language. Swords of Fury, slightly earlier than Jokerz, was one such case, so I suspect Jokerz will be too. If there is an adjustment, though, it would have the existing value as 'Francais'

  • Like
Reactions: MajesticPinball
OP
OP
MajesticPinball

MajesticPinball

Site Supporter
Jan 11, 2018
535
380
63
24
Essex
I did try the W7 jumper just for luck but it made no difference. I Cant seem to find a language adjustment in the menu so I might have to learn French pretty quick :hmm:

OP
OP
MajesticPinball

MajesticPinball

Site Supporter
Jan 11, 2018
535
380
63
24
Essex
A bit more progress, playfield is partialy stripped down and I’ve fitted a remote batter holder which seems to have fixed the intermittent booting issues i was having.





I also finally took the plunge and ordered a Lyman Turbo Pro 1200 tumbler which arrived this morning so cant wait to annoy my neighbours and start tumbling parts haha!

OP
OP
MajesticPinball

MajesticPinball

Site Supporter
Jan 11, 2018
535
380
63
24
Essex
Got cracking again today, i stripped the playfield down as far as I’m going to go. Most of the posts and T-nuts were so rusted i dremmeled the heads off of the screws and banged them through - will just replace all of these with new parts when the time comes.

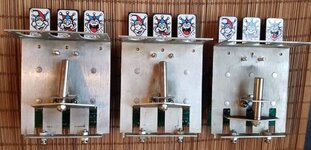

I cleaned the playfield a bit before taking those pictures and wax is on the playfield now so while waiting for that I disassembled all 3 drop target banks, cleaned them and gave them a spruce up with some gorgeous new decals. I also changed 4 sets of header pins on the drop target boards as they were either missing, bent out of shape or covered in mysterious brown gunk.
