Flash roms

[Pudsey pinball]

Hey all ,just attempting to get my latest new pin up n running but not original board set,this mpu has roms one being a Leon test Tom but I’m unsure the position of new rom set I have got goes where on board or if I’ve anything missing!! Seem to be doubtful in my mind these days!!!



[Paul]

Whats the part number of the board Dave?



[Wizcat]

I wonder if that one that's labelled IC27 should actually be IC17? Might be worth checking if that's where the confusion is Paul?



[Paul]

OOh.. yes!!! And a type on the archive on IPDB....



Going by the others, i would agree!!!



[Pudsey pinball]

Board num..1D-2001-133-4



[Paul]



[Wizcat]

There's some instructions here too Dave: https://www.actionpinball.com/parts.php?item=ROMS116

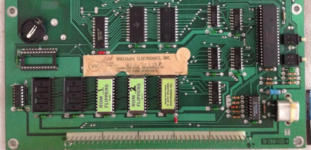

..You have got IC14, IC20 and a mislabelled IC17. Those go in the slots I highlighted above. And you need to take out old (redundant) ROMs in IC21 and IC22



[Pudsey pinball]

Ah I’ll give that a whirl ..cheers peeps



[Pudsey pinball]

I have a chip in ic26 ?



[Wizcat]

1. Chip sockets IC21, IC22, and IC26 must be empty (or absent) when using either of the new 3-chip sets (only IC14, IC17, IC20 are used with the new 3-chip sets).

(https://www.actionpinball.com/parts.php?item=ROMS116)



[Pudsey pinball]

It was a big No from the mpu still nothing so need to check



[Chilpin]

That flipper rom is mislabeled. Game rom: IC14, GreenFlipprom1: IC20, GreenFliprom2: IC17, not 27. And remove IC 22, 26 and 21.
But if with that setup the game is not running.. was the that board running before? was the board tested before?
You have the originals RN sockets in the board, I ve seen those failing in the past. If you can remove the chips from those sockets easily, they should be replaced.



[Pudsey pinball]

Yeah I can’t guarantee the board set are good ,I swapped my cpu from gorgar ,the game now boots ,driver board locks left sling at mo so original cpu and driver are faulty



[Chilpin]

so they are faulty? If you need someone to repair them I can do that.
