Changing ROM on bride of pinbot

AlanW74

Site Supporter
Jun 28, 2020
35
9
8
Solihull
Alias
Badders74
Hi all,

can someone advise me where the ROM is located on bride of pinbot? I have a German speaking BOP and want to change it over for the L6 English speaking Rom but need to know where it’s located. Thanks 😊


Markjduk

Site Supporter
Jun 19, 2020
107
42
28
Peterborough
Alias
MartyMcFly
If you look in the manual, section 2 - 3 it shows the layout of the boards, sound board is the top board. Then look at page 2 - 5 sound roms are U14, U15 and U18 located top right of the board. Speech ROMs are U15 & U18.

Last edited:

strobey

Site Supporter
Jul 24, 2011
697
577
93
Derbyshire
pinball.live
Alias
Tim
I would love to hear that... Ich kan sprechen!

Sound ROMs are at the very top on the sound board, and you'll also likely need to change the game ROM too which is on the CPU board far left, labelled U6.

OP
A

AlanW74

Site Supporter
Jun 28, 2020
35
9
8
Solihull
Alias
Badders74
How can I get my hands on a English speaking ROM for BOP ? I can see it’s downloadable from ipdb but it’s getting it on a chip which I have no idea on?


domlouis

Beta Tester
May 28, 2014
1,379
761
113
Derby
How can I get my hands on a English speaking ROM for BOP? I can see it’s downloadable from ipdb but it’s getting it on a chip which I have no idea on?
Some people can do that for you for a fee. I believe our very own admin Paul can do them.

  • Like
Reactions: Paul

Inkochnito

Registered
Nov 15, 2014
99
102
33
Netherlands

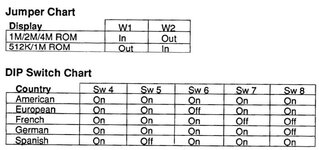

Yes, Just set the dipswitch at the right country.
The German text is within the rom.
I think dip 1 is turned off when you handled the cpu board.

Last edited:
OP
A

AlanW74

Site Supporter
Jun 28, 2020
35
9
8
Solihull
Alias
Badders74
Yes, Just set the dipswitch at the right country.
The German text is within the rom.
I think dip 1 is turned off when you handled the cpu board.
Sorry for sounding thick but I checked the cpu board behind the back glass and couldn’t find any dipswitches to change?

Do you know where I should be looking?

apologises for the stupid questions but I am new to this. 🙁
