3-D Print idea - Bally SS backbox Grills

[AlanJ]

Often the back box heat holes are broken on Bally SS games.

Would be nice to have a 3-d printed grill to glue or screw over.

Here's an example


And here is the ultimate - a metal grill that was made for a Centaur:


Given there are 4 sets of 2 slot holes, if might be easier to make it as either 4 or 2 separate prints? Dunno?

Anyone fancy a bash please? I just dont have the 3-d design skills.



[AlanJ]

PS - But I'm prepared to have a few printed up either on your equipment or by JLC or whoever. (again recommendations to who to use and what material with be best?)

Ta



[Ashbo]

Often the back box heat holes are broken on Bally SS games.

Would be nice to have a 3-d printed grill to glue or screw over.

Here's an example
View attachment 299018

And here is the ultimate - a metal grill that was made for a Centaur:
View attachment 299019

Given there are 4 sets of 2 slot holes, if might be easier to make it as either 4 or 2 separate prints? Dunno?

Anyone fancy a bash please? I just dont have the 3-d design skills.

Great idea Alan. It’s a simple geometric shape so wouldn’t be a tough design, as you say, in sections. Would you want it with screw holes or to be glued and flush?

PLA should be fine and can be painted really easily with a primer and then top coat. (Assuming a colour match to body colour is desired?)



[AlanJ]

Great idea Alan. It’s a simple geometric shape so wouldn’t be a tough design, as you say, in sections. Would you want it with screw holes or to be glued and flush?

PLA should be fine and can be painted really easily with a primer and then top coat. (Assuming a colour match to body colour is desired?)

I'd probably glue it on



[Ashbo]

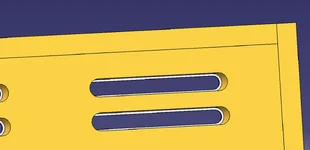

I’ll have a play and see what I can knock up. 3 prices . Each 230.667mm wide by 57mm high should do it.



[Ashbo]

I’ll have a play and see what I can knock up. 3 peices . Each 230.667mm wide by 57mm high should do it.



[Perky]

Hi Alan, would this do the job?
https://www.diy.com/departments/door-vent-louvred-aluminium-610x76mm/5010952973012_BQ.prd



[AlanJ]

Hi Alan, would this do the job?
https://www.diy.com/departments/door-vent-louvred-aluminium-610x76mm/5010952973012_BQ.prd

Very close. Need 620 wide to just cover the holes and 690mm to fully cover width of backbox panel, excluding the sides.

But thanks it’s a good idea. I’ll look for one a bit bigger!



[Perky]

Ah, sorry measured it on my Speakeasy and it was the perfect size
Might still work with printed "end pieces", cutting the grill to suit if you can't find the exact size...just a thought



[Ashbo]

I’ll have a play and see what I can knock up. 3 peices . Each 230.667mm wide by 57mm high should do it.



[AlanJ]

View attachment 299080

Brill. I measured a backbox) just the rear panel) at 690mm but I guess they’re all going to be a little different.



[Ashbo]

Brill. I measured a backbox) just the rear panel) at 690mm but I guess they’re all going to be a little different.

Cool, we can tweak, my FG measured 692- I guess they can swell over time too.



[stevebm1]

I remember using a router years ago to make a new board for the back of a bally backbox,it took me bloody ages,then I sold the machine six months later ,the idea of plastic grills to hide damage is a great idea



[Judderman]

View attachment 299080

If you ping me the Fusion file, I can print a couple out to take to Alan's league meet next Sunday.



[Ashbo]

If you ping me the Fusion file, I can print a couple out to take to Alan's league meet next Sunday.

Just PM'd you with a ZIP file - hopefully that gets to you ok.

I will try printing also, I think Tree Supports are the way to go



[AlfonsoB]

https://www.amazon.co.uk/Openings-Suitable-Appliances-Internal-External/dp/B004R1ZI1O/ref=sr_1_23?crid=1EN5SBH20CX3C&dib=eyJ2IjoiMSJ9.0327H8QSWRikqkg5zkIin5vpy5QnWGyU968LWNEHlCnwOnsgo5zWrSE5SNenlKUs4bSnUTNHMj2Gk1RHQtFTXnsl35v7fjHh6tLsWcxRcCaQ5BtAJZEGFrV2DVssKJH0ggj5uDGyjWfT9OxGH3WydREjDALj7nlYtDmVGVtjKHC4NttuppgrIntN9JpkYJBDz8kBF2AeGNFp32CRyPcdjKT9i0l-pPX8FE_tS-gzQcTtRvaaC_x77sFrp9U76P9Q6LBi8HZN83zPcdDmKgwC8lOx4J_UQU5_baiENuM0v9w.4ioKUBsumpNQCx_mAgy0TvS6y7sii7wm1DoGliCxjF0&dib_tag=se&keywords=700mm%2Baluminium%2Bvent&qid=1770018337&sprefix=700mm%2Baluminium%2Bvent%2Caps%2C121&sr=8-23&th=1



[AlanJ]

https://www.amazon.co.uk/Openings-Suitable-Appliances-Internal-External/dp/B004R1ZI1O/ref=sr_1_23?crid=1EN5SBH20CX3C&dib=eyJ2IjoiMSJ9.0327H8QSWRikqkg5zkIin5vpy5QnWGyU968LWNEHlCnwOnsgo5zWrSE5SNenlKUs4bSnUTNHMj2Gk1RHQtFTXnsl35v7fjHh6tLsWcxRcCaQ5BtAJZEGFrV2DVssKJH0ggj5uDGyjWfT9OxGH3WydREjDALj7nlYtDmVGVtjKHC4NttuppgrIntN9JpkYJBDz8kBF2AeGNFp32CRyPcdjKT9i0l-pPX8FE_tS-gzQcTtRvaaC_x77sFrp9U76P9Q6LBi8HZN83zPcdDmKgwC8lOx4J_UQU5_baiENuM0v9w.4ioKUBsumpNQCx_mAgy0TvS6y7sii7wm1DoGliCxjF0&dib_tag=se&keywords=700mm%2Baluminium%2Bvent&qid=1770018337&sprefix=700mm%2Baluminium%2Bvent%2Caps%2C121&sr=8-23&th=1

thanks, the dimensions quoted seem to be for the opening, with the actual size a bit bigger - but I've bought one anyway to check it out. I also found another type which may be better.



[AlfonsoB]

As a curveball for something bespoke.
A nice piece of lasercut 1.5mm brushed stainless sheet might look nice here. Single piece.
slots made to match the original but a mm or 2 down on backbox size. bottom pic from inside backbox.

just Holes added for pan head screws

No painting required.



[AlanJ]

View attachment 299090View attachment 299091

As a curveball for something bespoke.
A nice piece of lasercut 1.5mm brushed stainless sheet might look nice here. Single piece.
slots made to match the original but a mm or 2 down on backbox size. bottom pic from inside backbox.

just Holes added for pan head screws

No painting required.

The only issue with that is if the original holes are knackered - which they often are, you will still see them.



[AlanJ]

Like:



[AlfonsoB]

The only issue with that is if the original holes are knackered - which they often are, you will still see them.

Remove frayed wood. A lick of back paint on the edges of the slots and with the cover on its wont be seen.



[Ashbo]

Just PM'd you with a ZIP file - hopefully that gets to you ok.

I will try printing also, I think Tree Supports are the way to go

View attachment 299089

Only had the end of a roll of black PLA (must be over a year old) to play with so this warped mid print and the top layers are rough as a result, but size looks good to eye.

Will print with new PLA tomorrow.



[AlanJ]

Only had the end of a roll of black PLA (must be over a year old) to play with so this warped mid print and the top layers are rough as a result, but size looks good to eye.

Will print with new PLA tomorrow.

View attachment 299110

Wow. What a community. ~24hrs from idea to something physical.



[Ashbo]

Wow. What a community. ~24hrs from idea to something physical.

You get out of it what you put into it @AlanJ



[Judderman]

Only had the end of a roll of black PLA (must be over a year old) to play with so this warped mid print and the top layers are rough as a result, but size looks good to eye.

Will print with new PLA tomorrow.

View attachment 299110

Same happened with mine - newish, dry filament, both with & without support, and with stopping the aux fan. Will post pics later, but will bring what I have on Sunday @AlanJ



[Ashbo]

Same happened with mine - newish, dry filament, both with & without support, and with stopping the aux fan. Will post pics later, but will bring what I have on Sunday @AlanJ

Thinking of making this multi part with a flat rectangle and the baffles click in. May help
